Owner Name:

David Thompson

Builder Name:

David Thompson

Date Built:

2009

Status:

Being scenicked

Module Type:

Balloon Module

Length:

6'

Width:

2' (Interface end), 4' (balloon end)

Passing Sidings:

None

Other Tracks:

Red-to-Mountain & Yellow-to-Blue transition

Industrial Spurs:

None

Yard Tracks:

None

Engine Service:

None

Crossovers:

Yellow-to-Red

Electrical:

Track Buses:

12-Gauge Wire with Powerpole Connectors

12VDC Bus (White):

Accessory Bus (Brown):

LocoNet Bus:

Installed

Special:

Packaging for Transport

Solo

Module Photograph

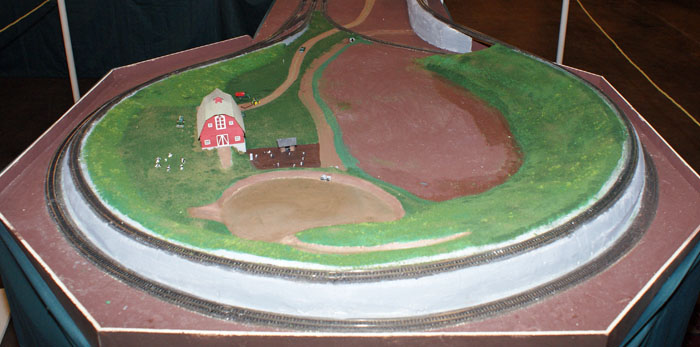

Lollipop Farm End View

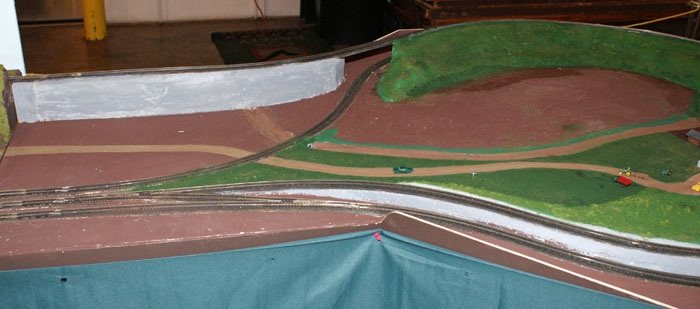

Lollipop Farm Interface View

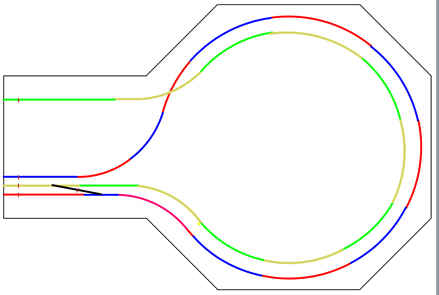

Track Plan

Description

Owner Name:

David Thompson

Builder Name:

D. Thompson, J. McCurry, D. Wenzel

Date Built:

1997 – 1999

Status:

Complete

Module Type:

Junction Module. Can be used as 4' Corner Module.

Length:

8' (4' corner + 4' spine)

Width:

4' on Corner, 2' on Spine

Passing Sidings:

None

Other Tracks:

Mountain Division, Wyes: Red & Mountain

Industrial Spurs:

None

Yard Tracks:

None

Engine Service:

None

Crossovers:

Red-to-Yellow, Blue-to-Yellow

Electrical:

Track Buses:

12-Gauge Wire with Powerpole Connectors

12VDC Bus (White):

12-Gauge Wire with Powerpole Connectors

Accessory Bus (Brown):

Not installed

LocoNet Bus:

Installed. Universal Panels front and back

Overall wiring compatible to RP developed for Junction Modules by Doug Stuard.

Turnout Control:

All turnouts are operated by Tortoise machines powered by Digitrax DS54 Stationary Decoders controlled by DCC switch commands. The DCC switch commands are generated by Team Digital SRC8 circuits in response to push-button operation. Three identical control panels are provided, each with push-buttons and LEDs to show the selected route. These panels are interconnected by either a private or the layout LocoNet so that a change made on any panel is reflected on the other panels. For more information click here.

Packaging for Transport

Packaged as corner and spine

Module Photograph

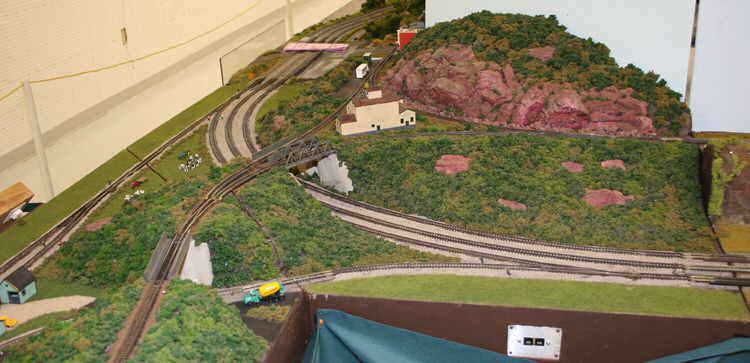

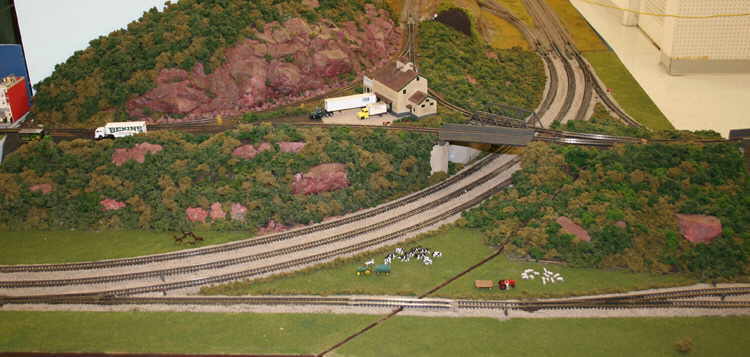

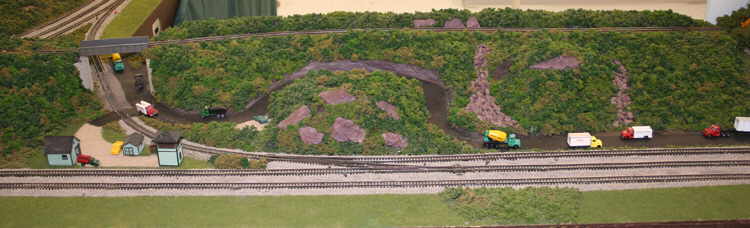

Red Rock Junction (Top photo = Left half of module; Middle photo = Right half; Lower photo = Back)

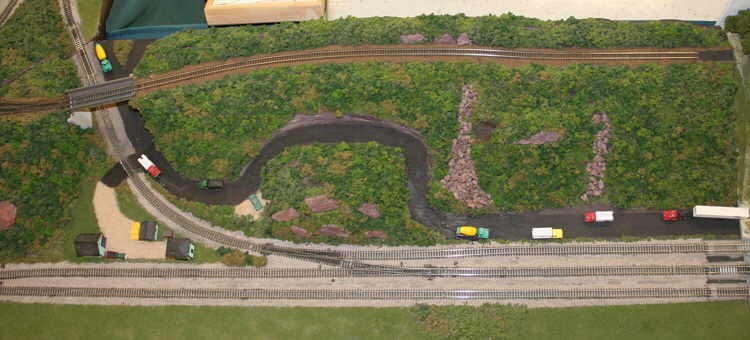

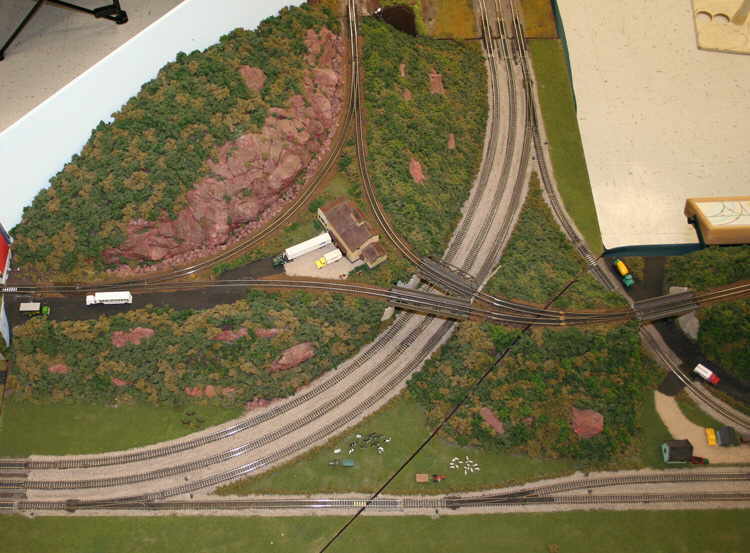

Red Rock Junction (Top photo = Left half of module from above;Lower photo = Right half from above)

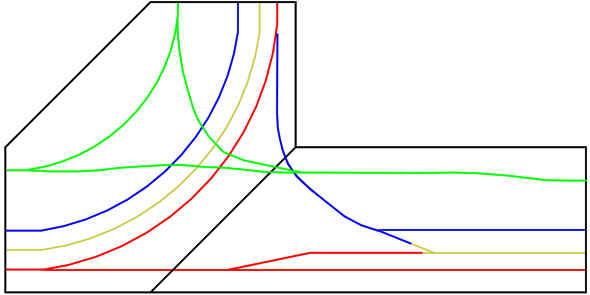

Track Plan

Description
Red Rock Junction is a free lance interpretation of railroading as might typically be found in the Appalachian Region. The red coloration of the rocks is common in this Region as is the hilly topography. Although there is no prototypical basis for the track plan, it represents the rural coal lines as well as the heavy traffic main lines common in the Region. All, of course, modified to fit the NTRAK plan. This is a "full-function junction" as it serves both Mountain Division and the Red Line Route.
