1922 M.S. Co. Catalogue

Magnetic Signal Company 1922 Catalogue





Richard Wilkens scanned the entire 1922 M.S. Co. catalogue

and provided it for our benefit…



click to enlarge

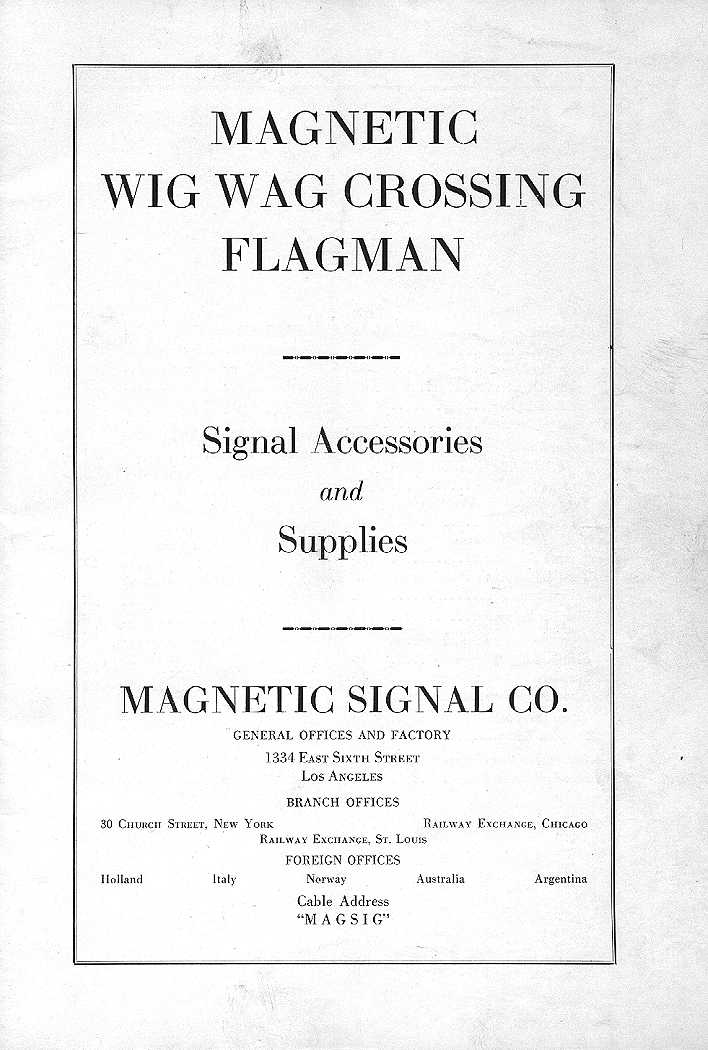

Page 1

 click to enlarge

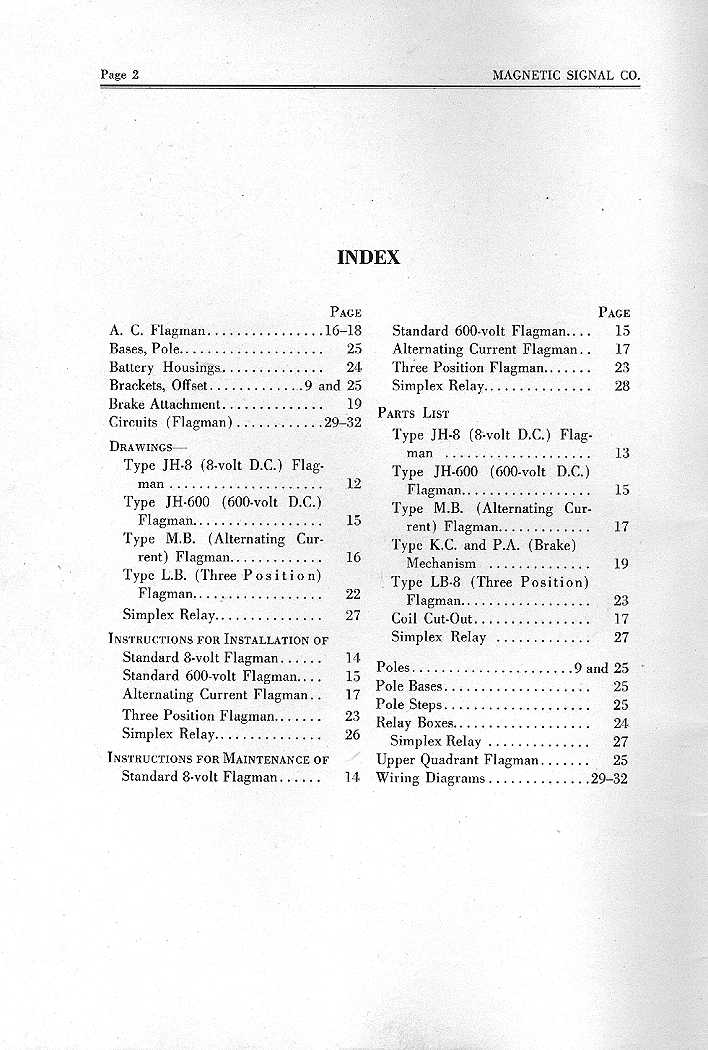

Page 2

 click to enlarge

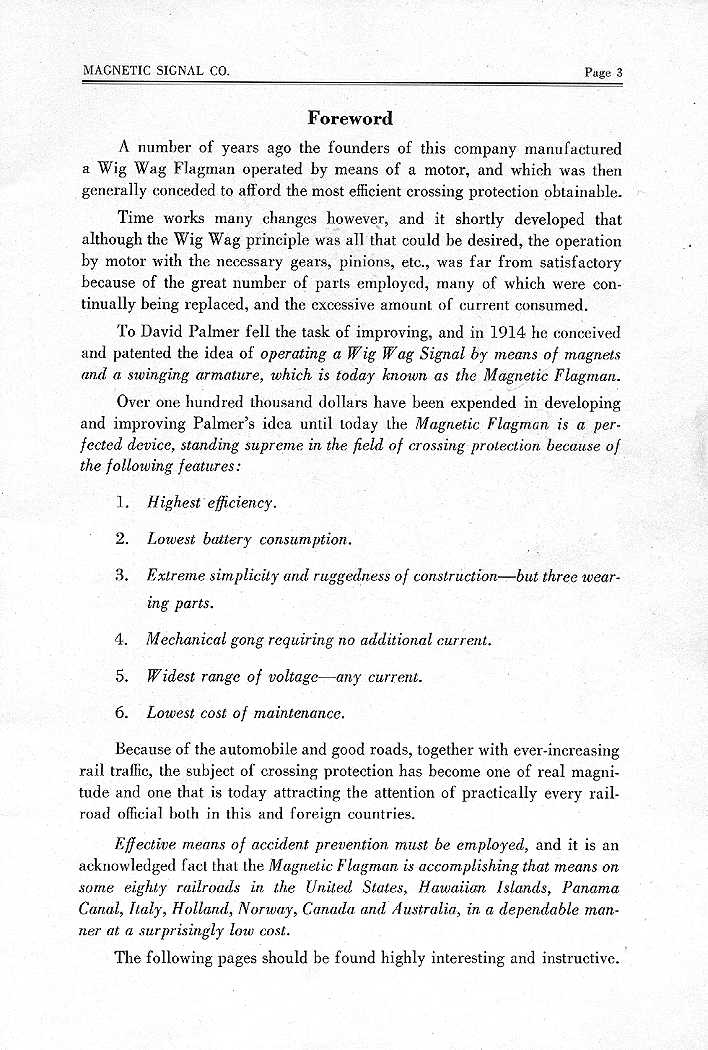

Page 3

click to enlarge

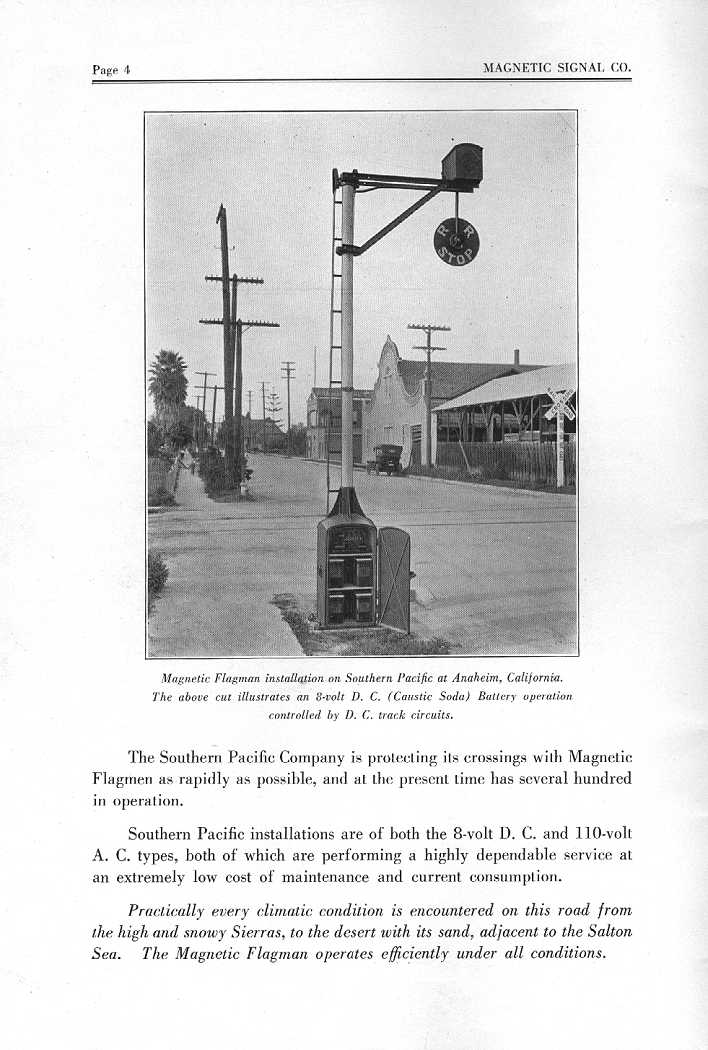

Page  4

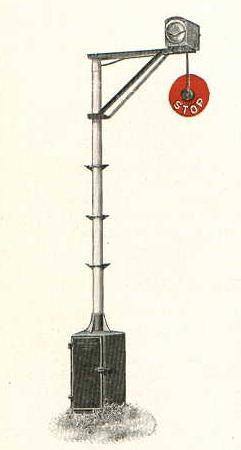

Note... The wigwag pictured on this page may be the Anaheim, Ca signal that is still in service!

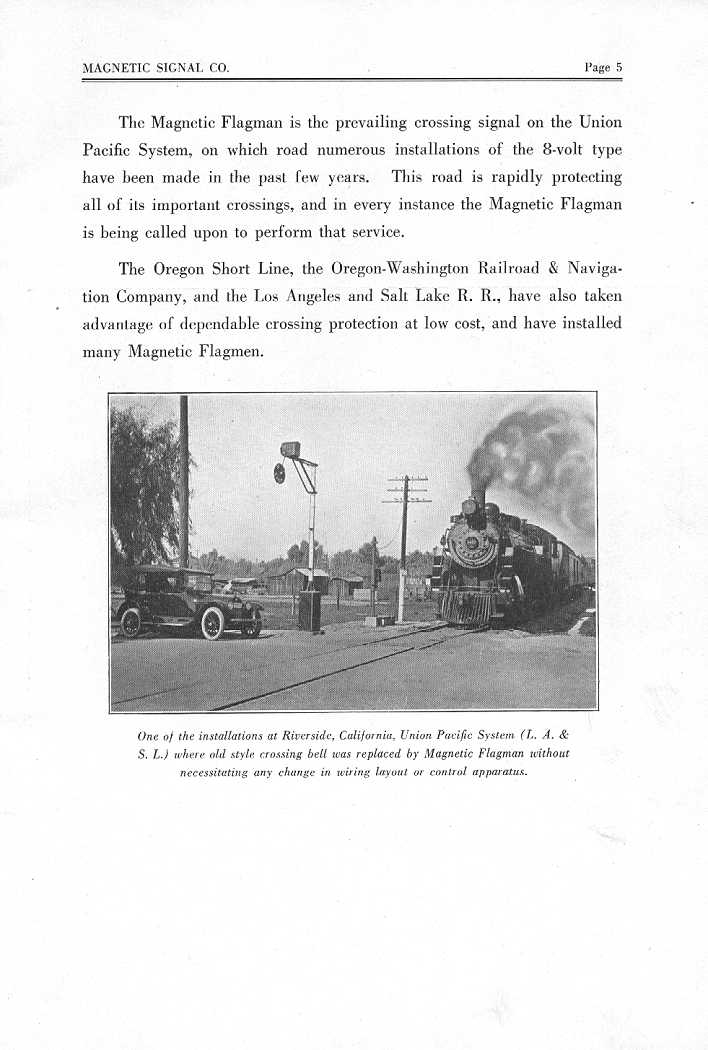

Page 5

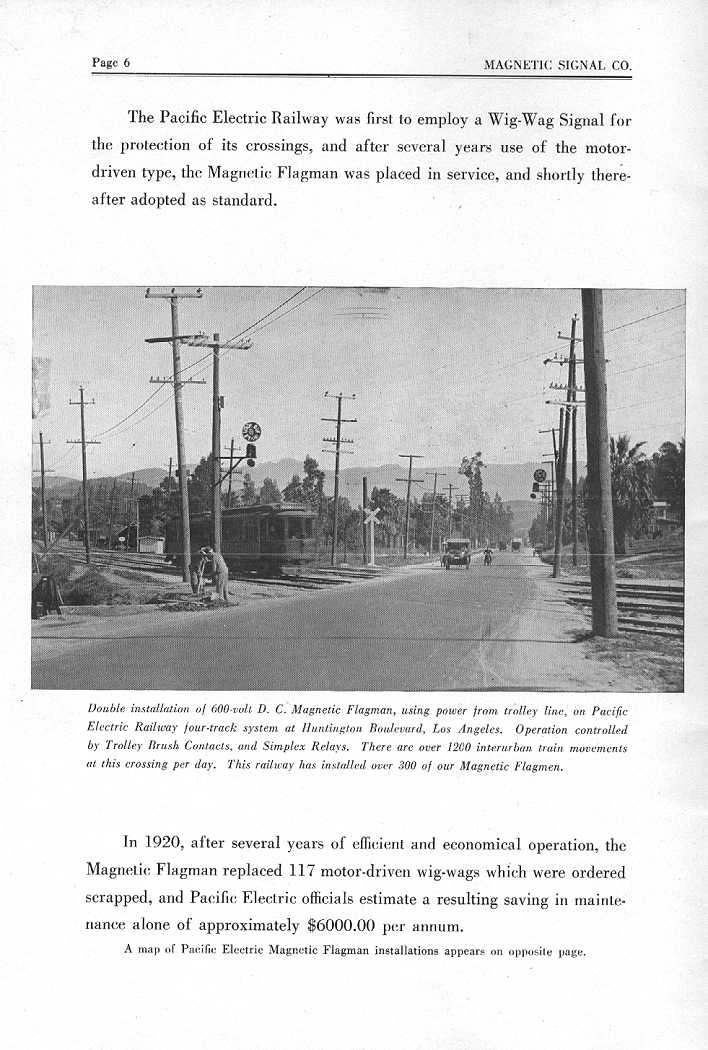

Page 6


Page 7

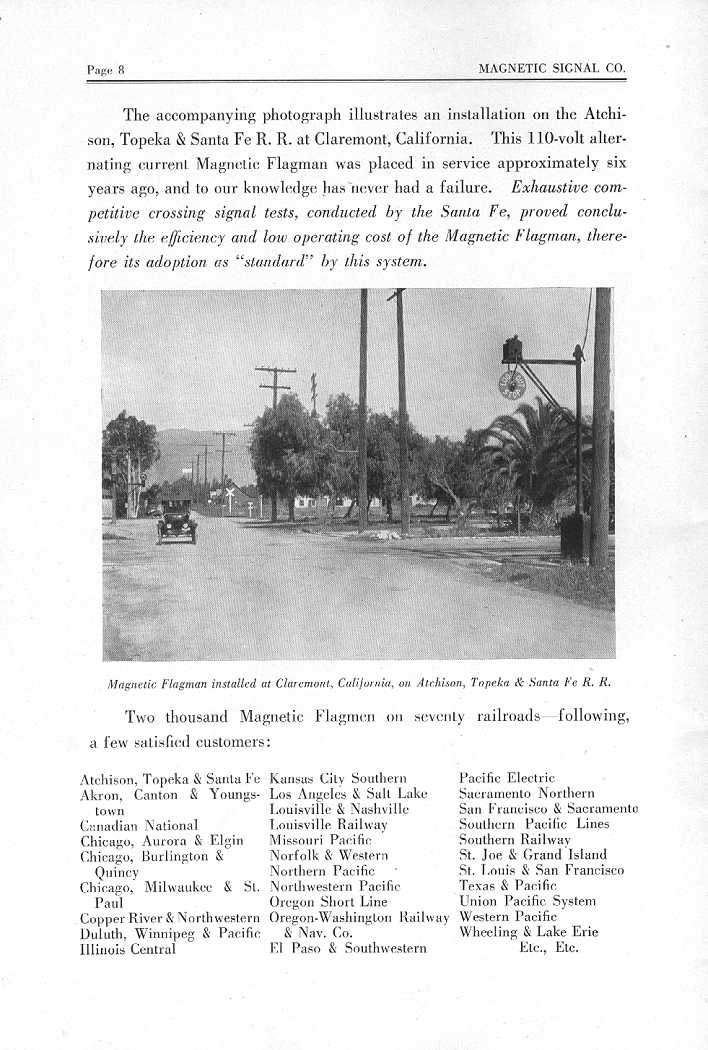

Page 8


Page 9

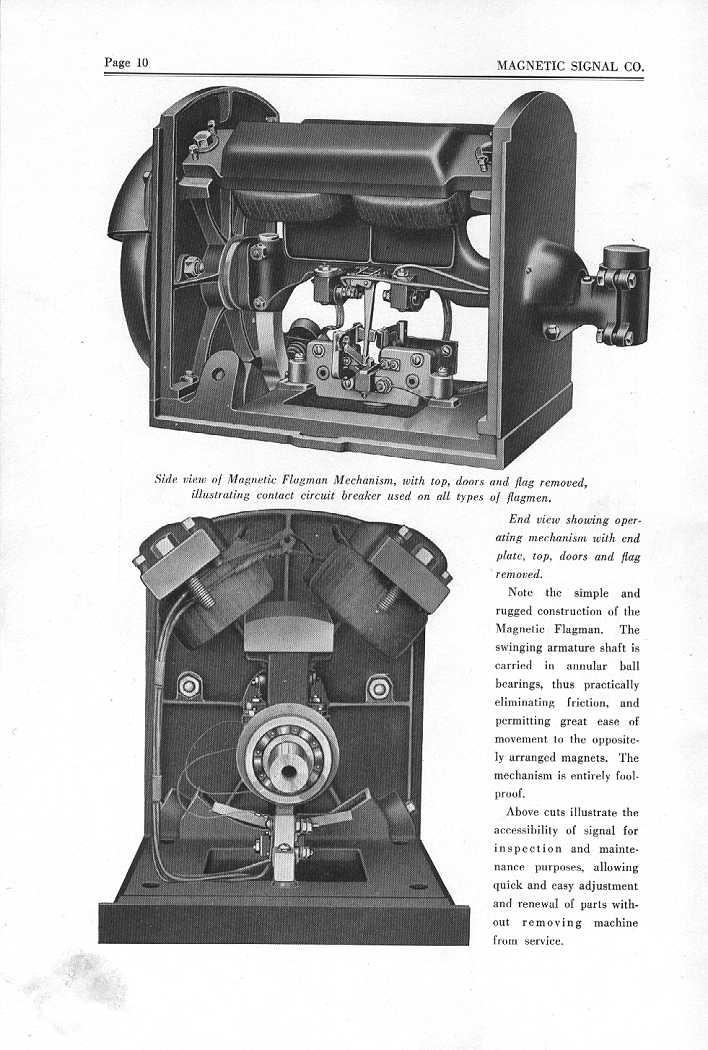

Page 10

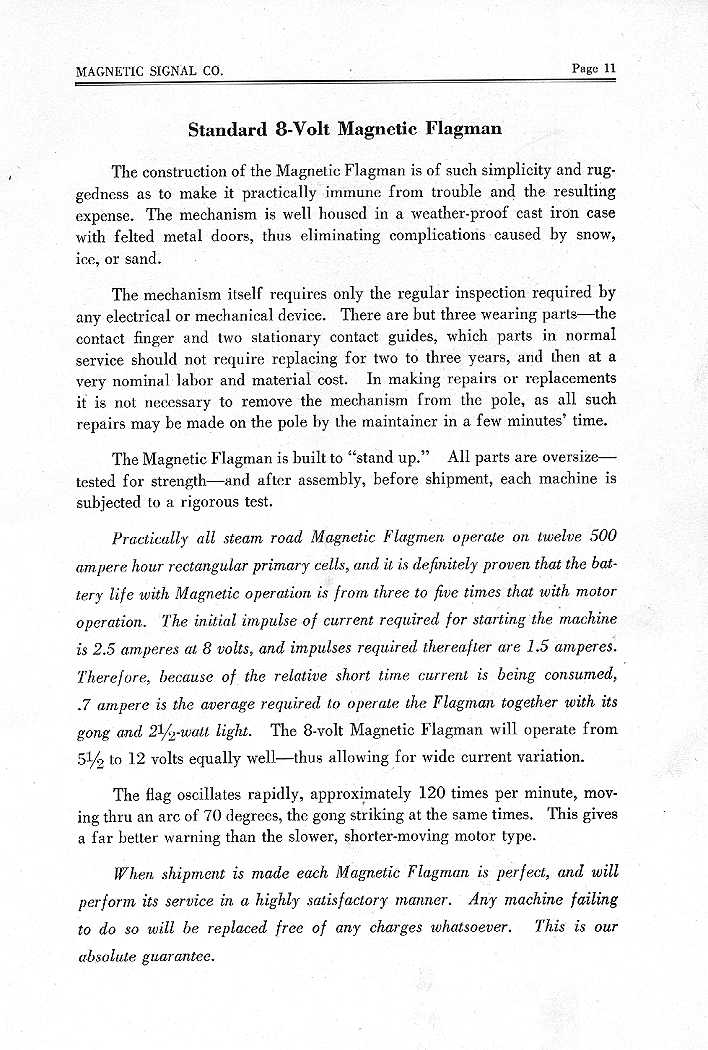

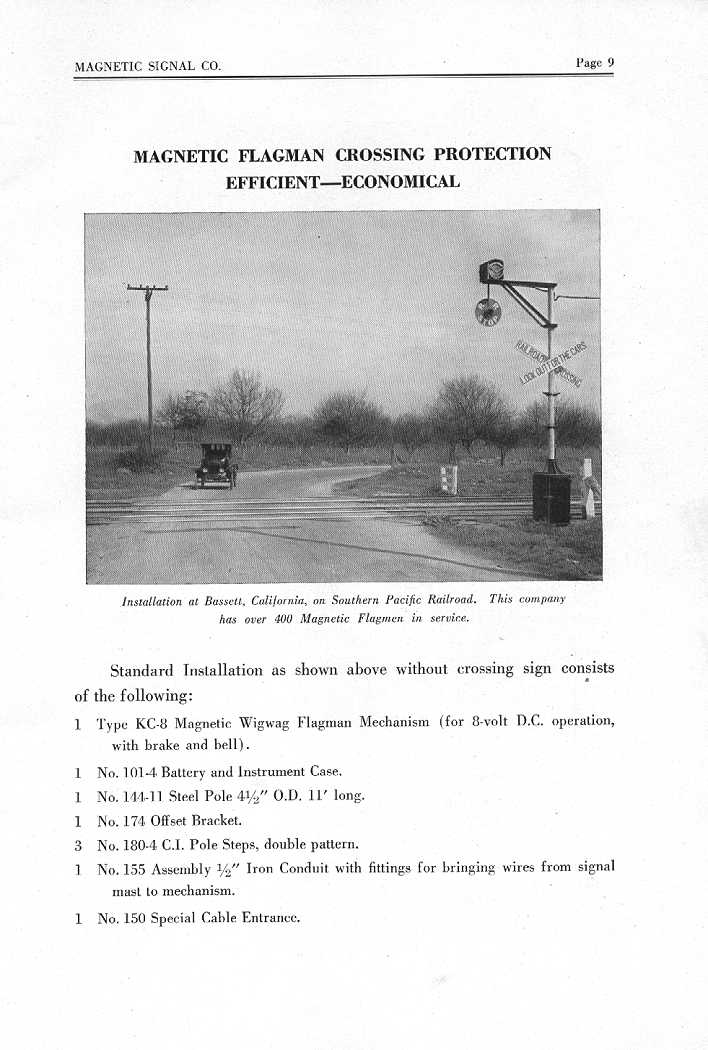

Page 11


Page 12

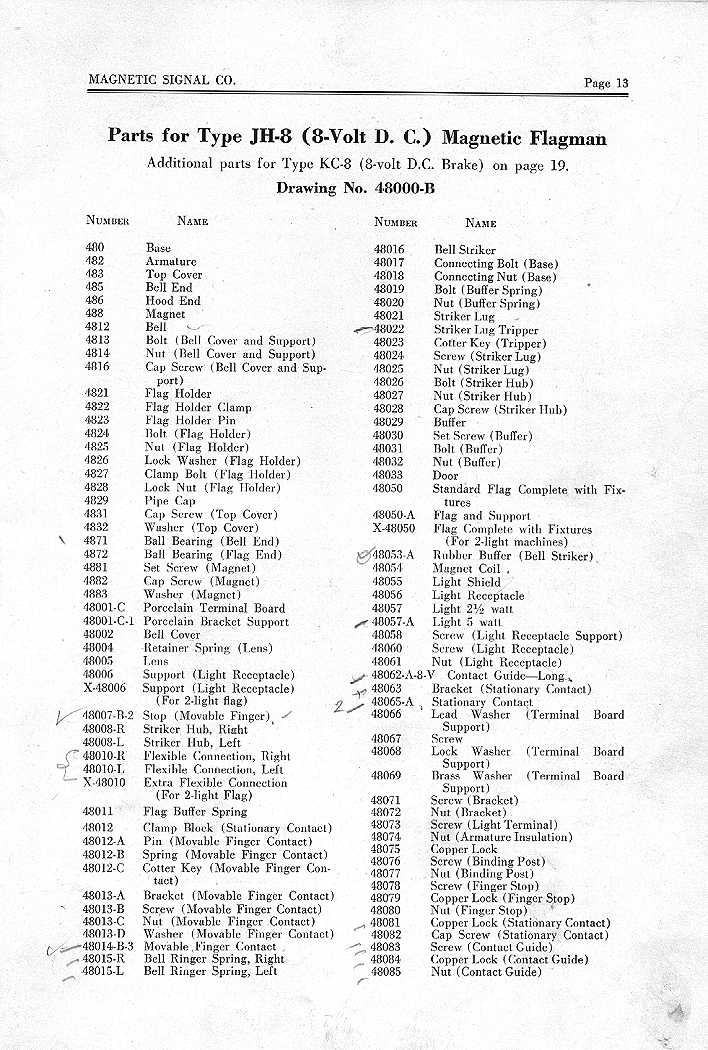

Page 13

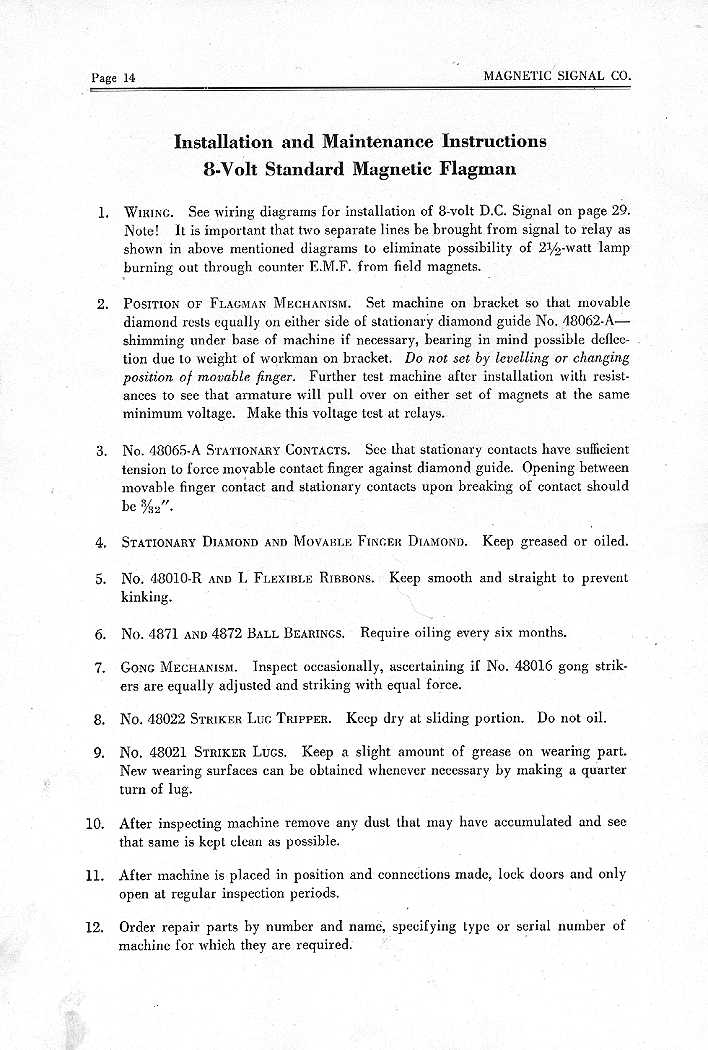

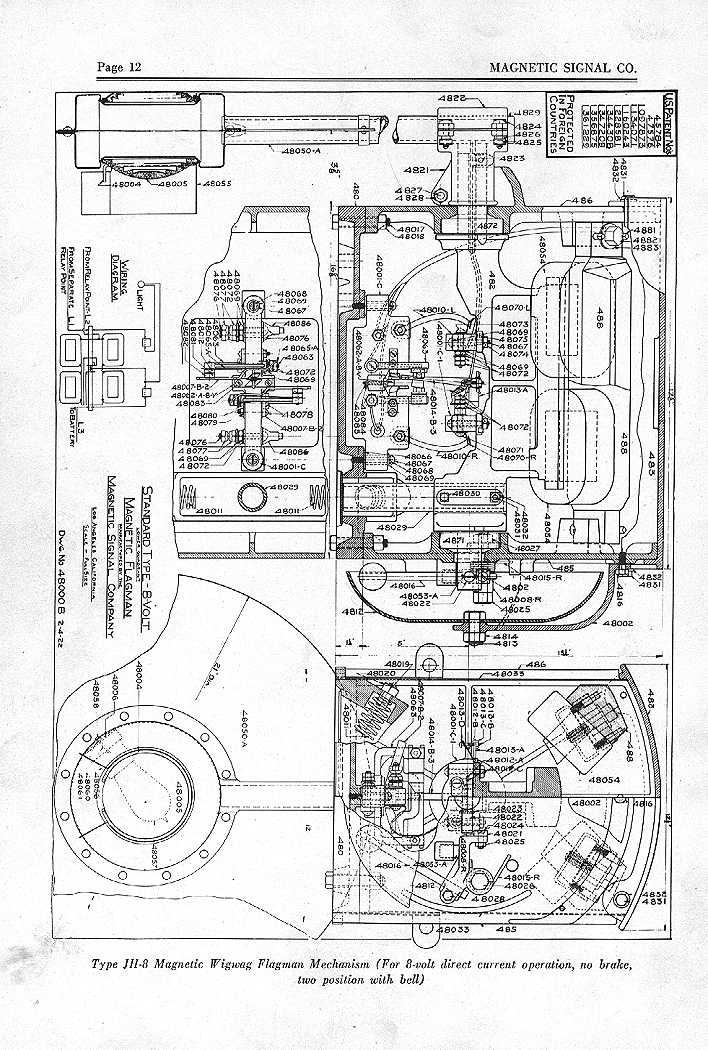

Page 14


Page 15

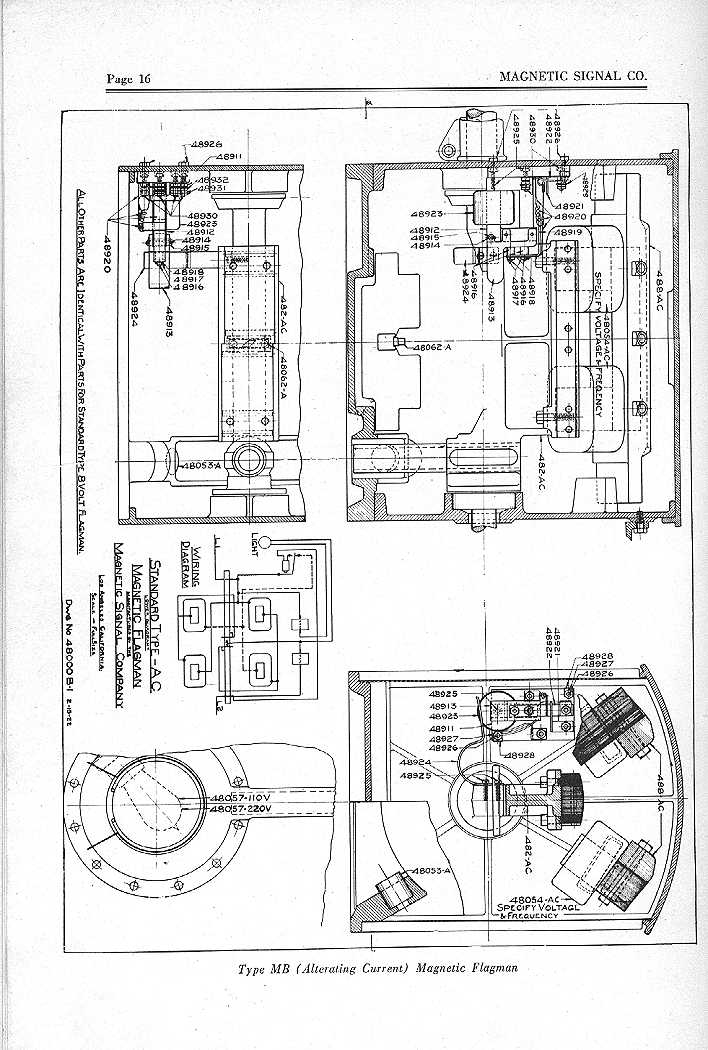

Page 16

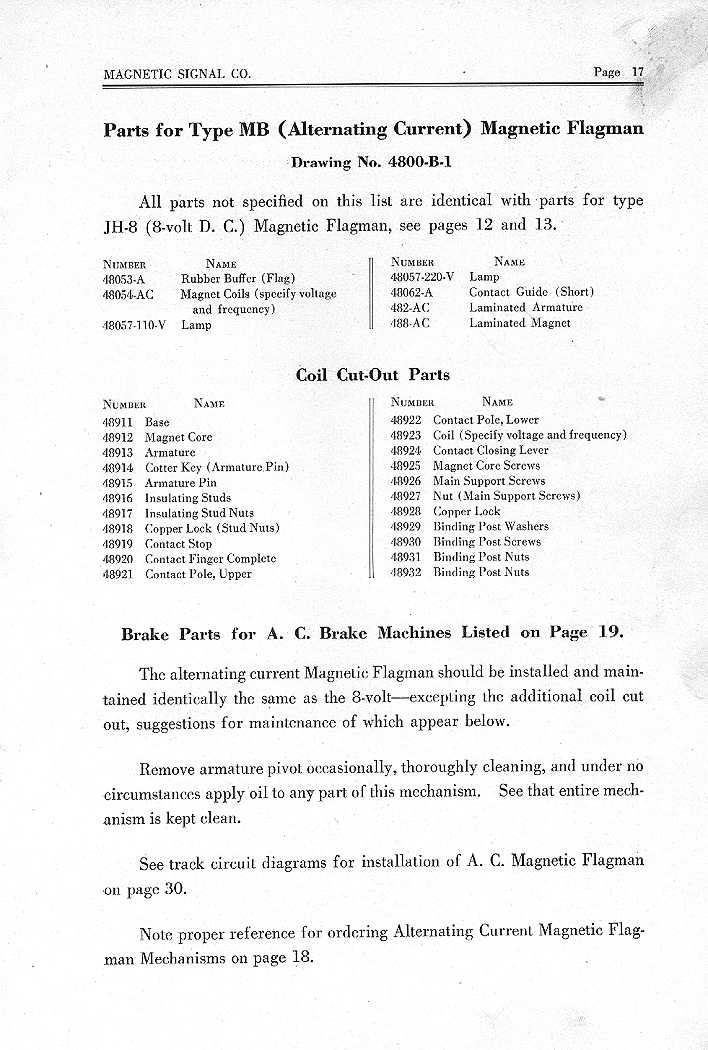

Page 17


Page 18


Page 19

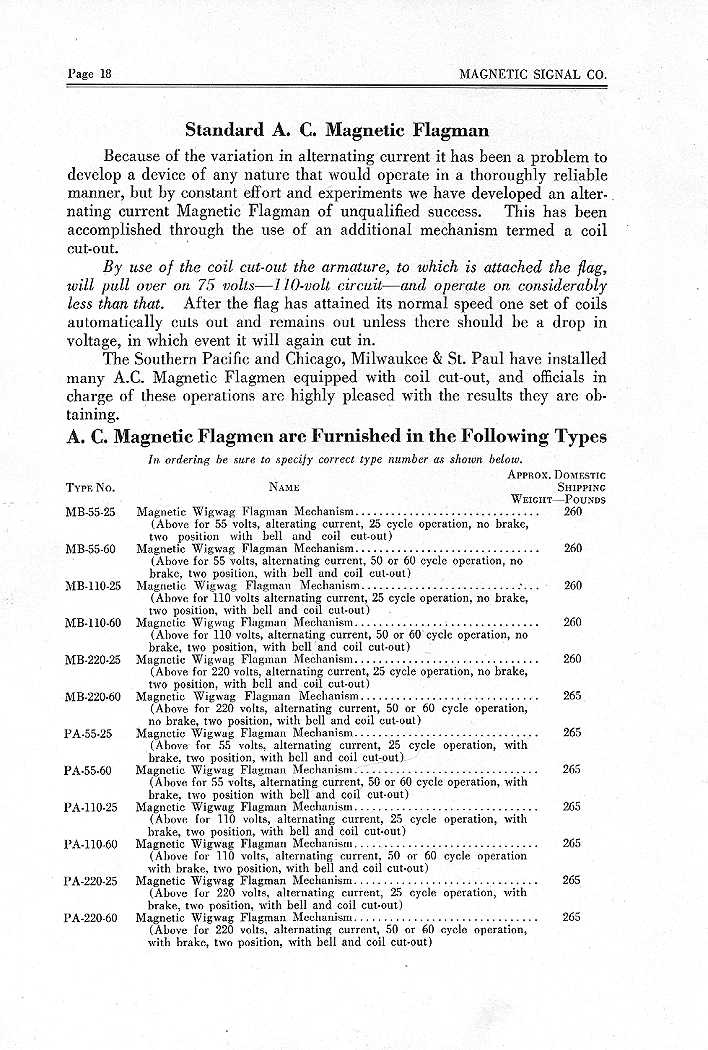

Page 20


Page 21

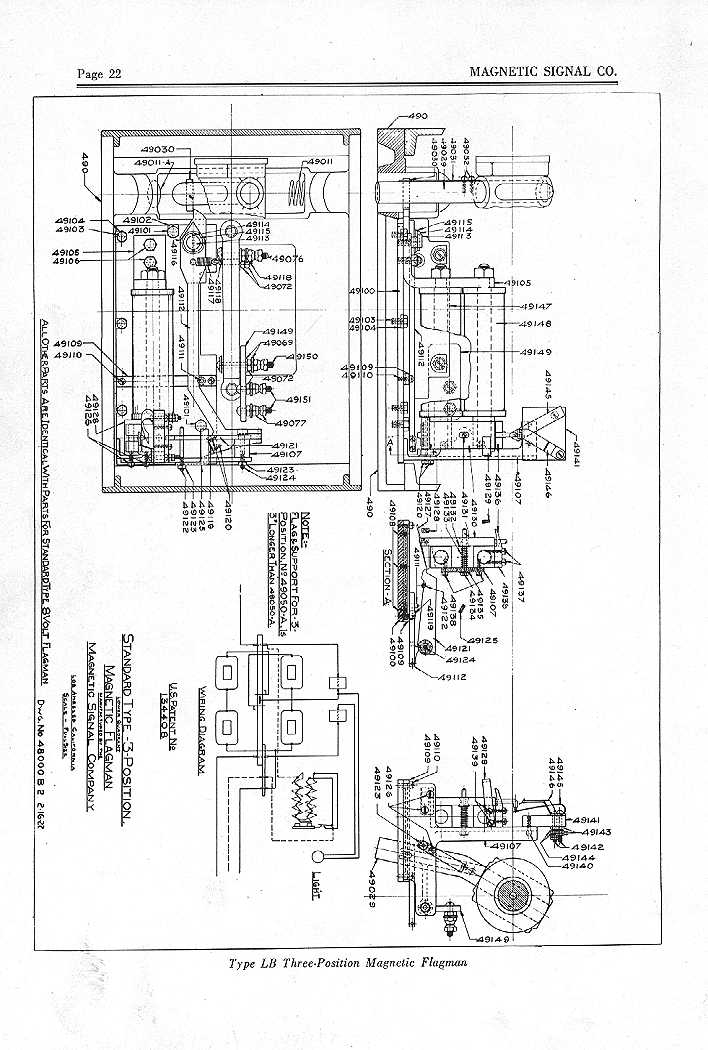

Page 22

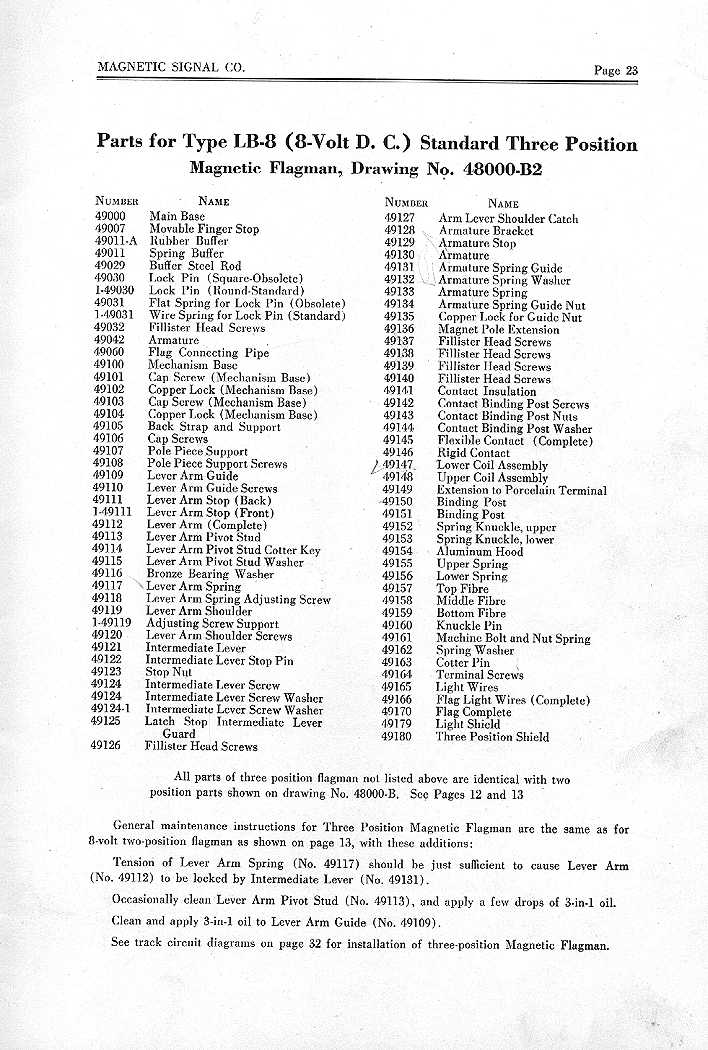

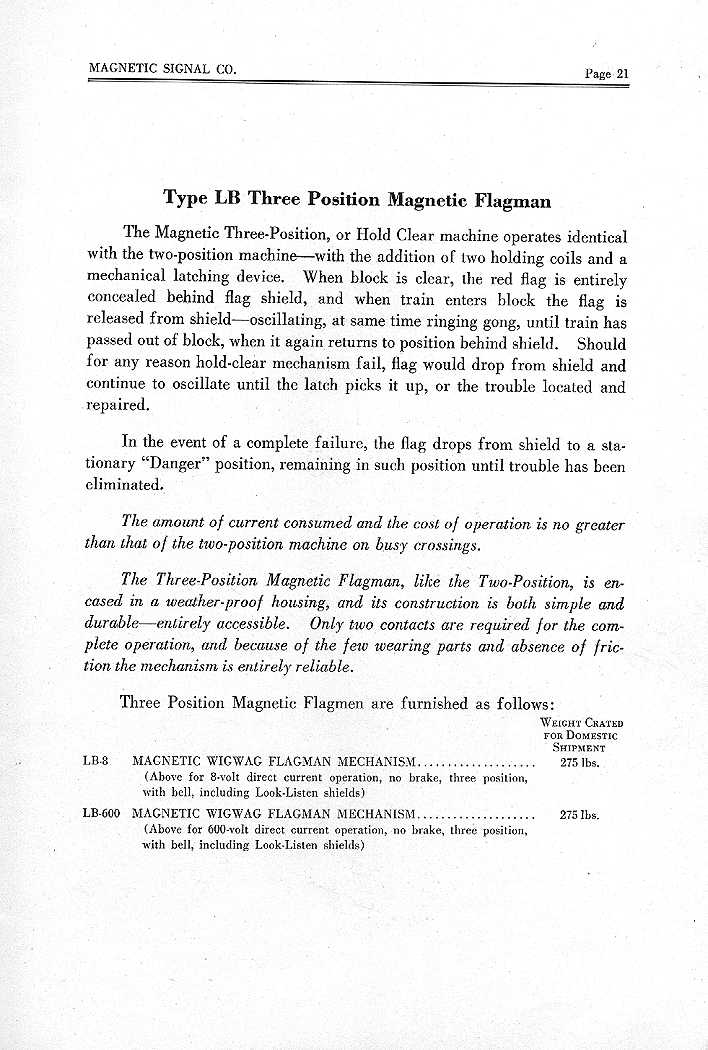

Page 23


Page 24

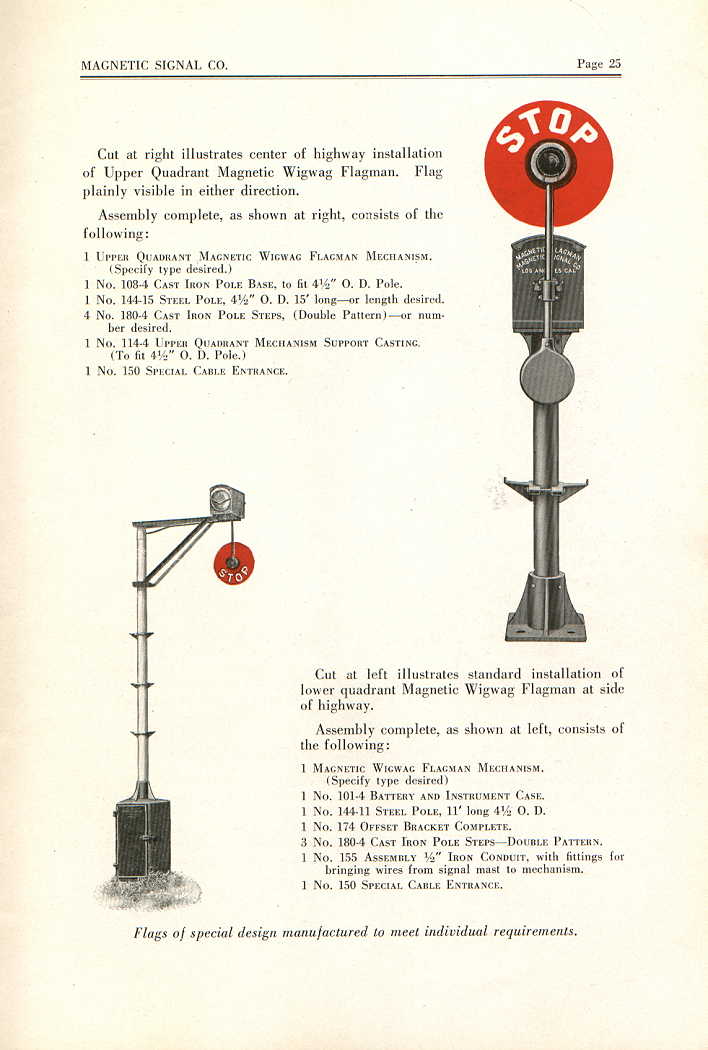

Page 25

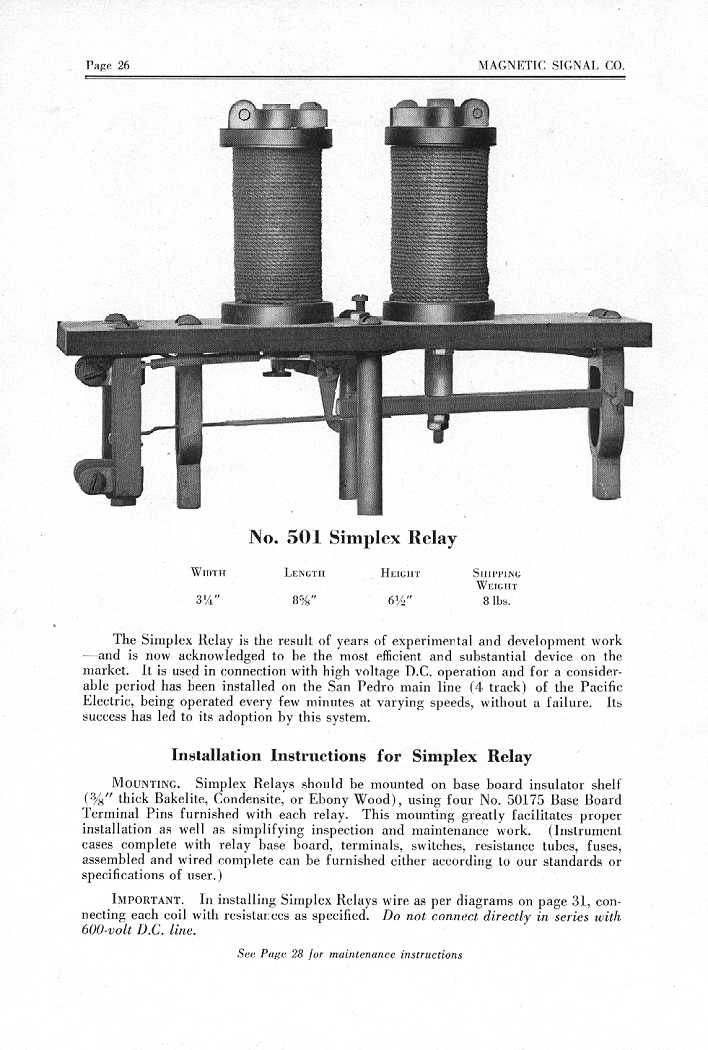

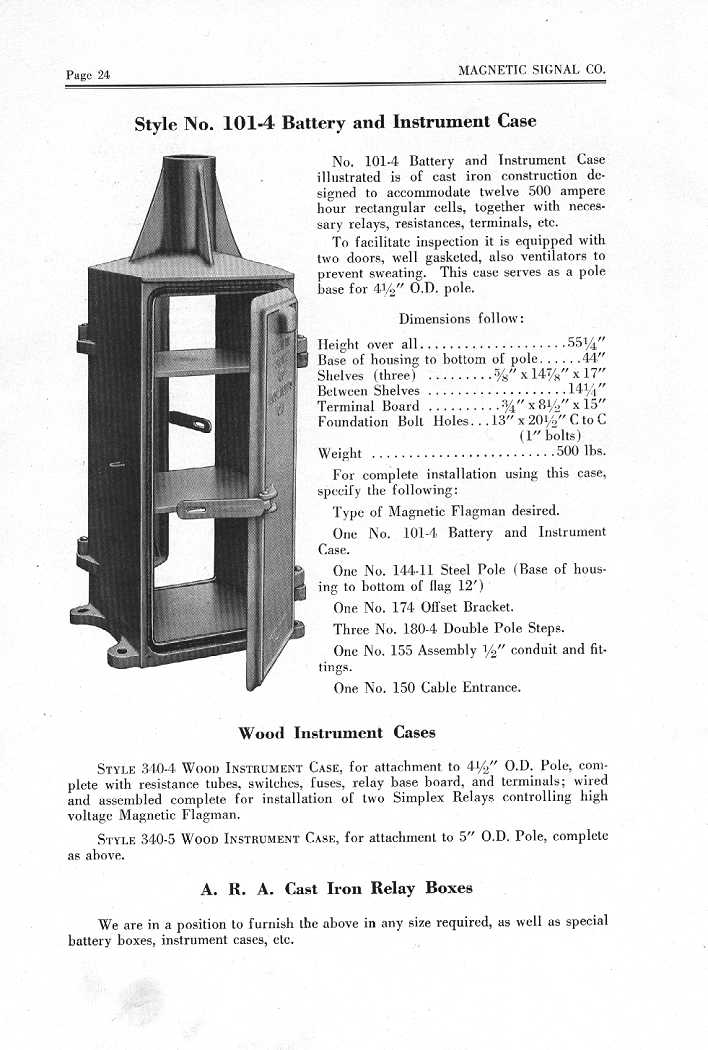

Page 26

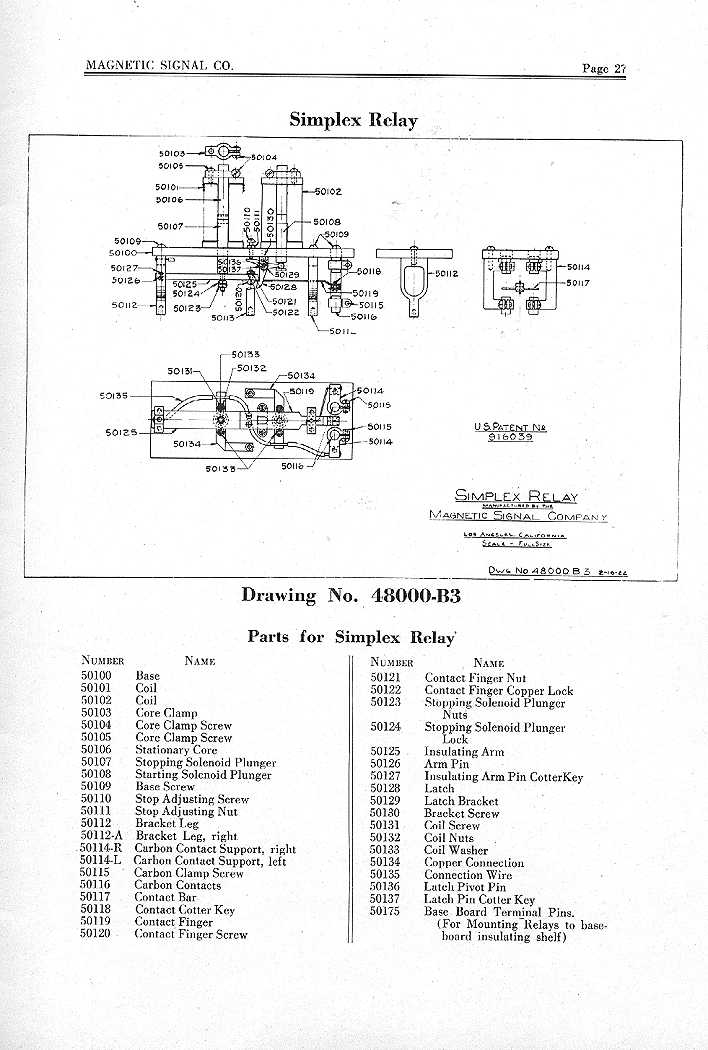

Page 27

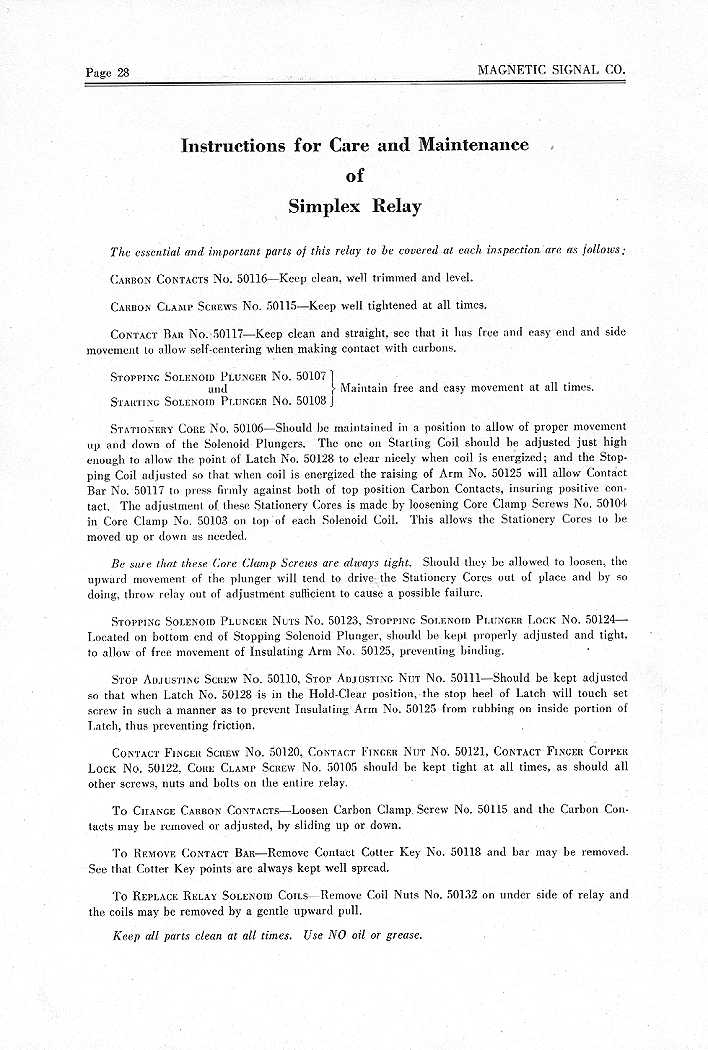

Page 28

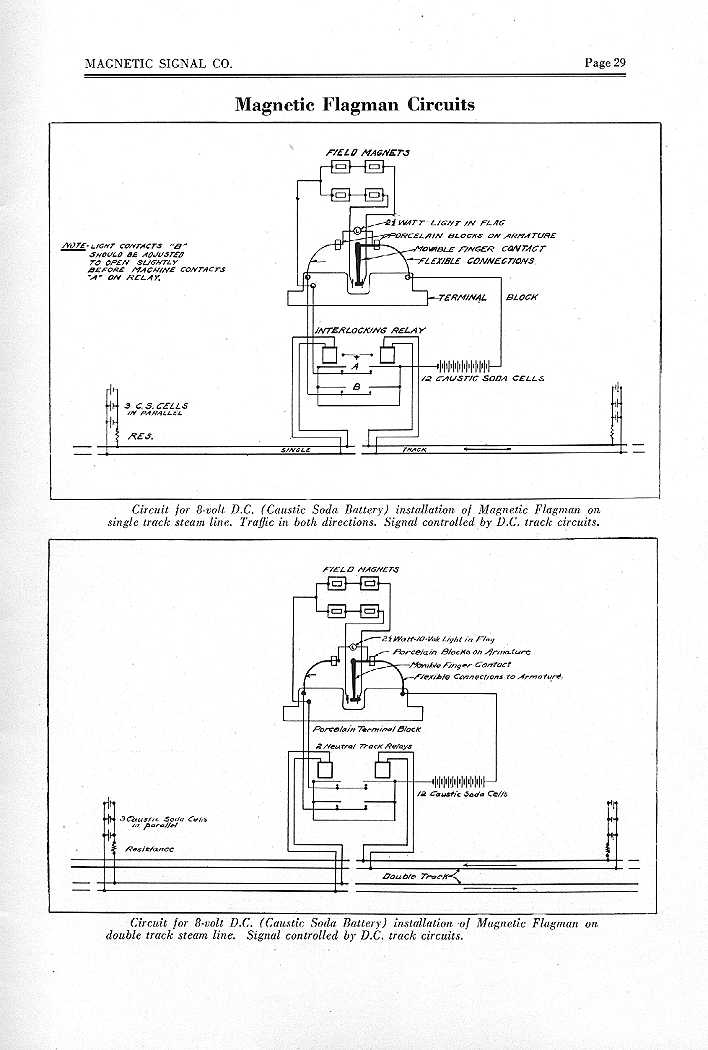

Page 29

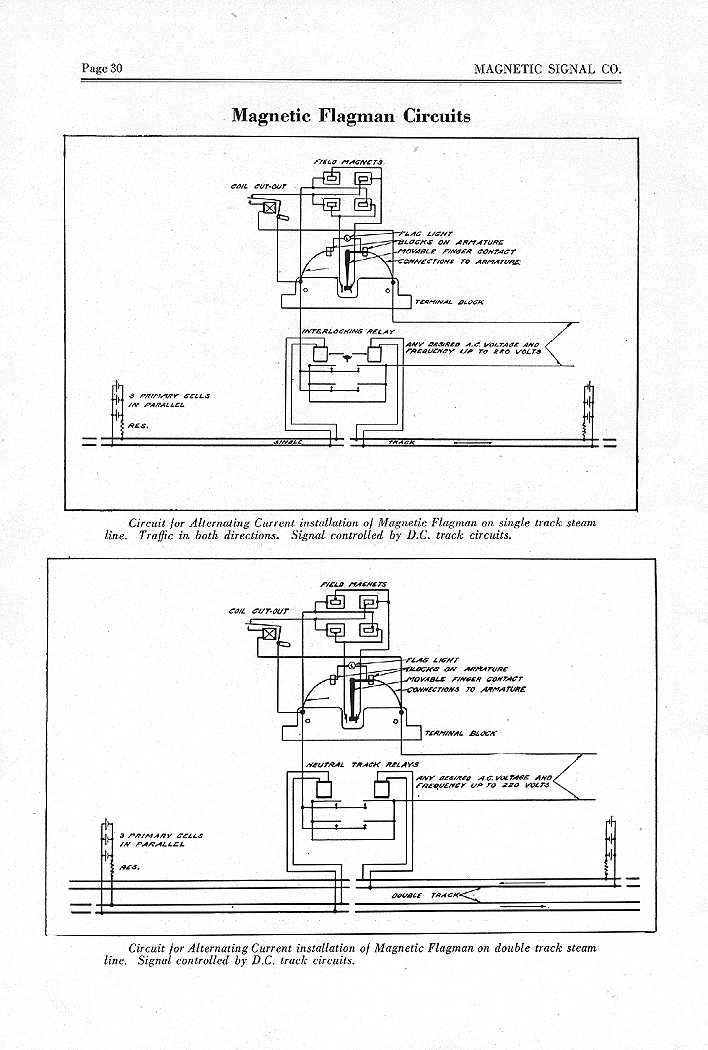

Page 30


Page 31

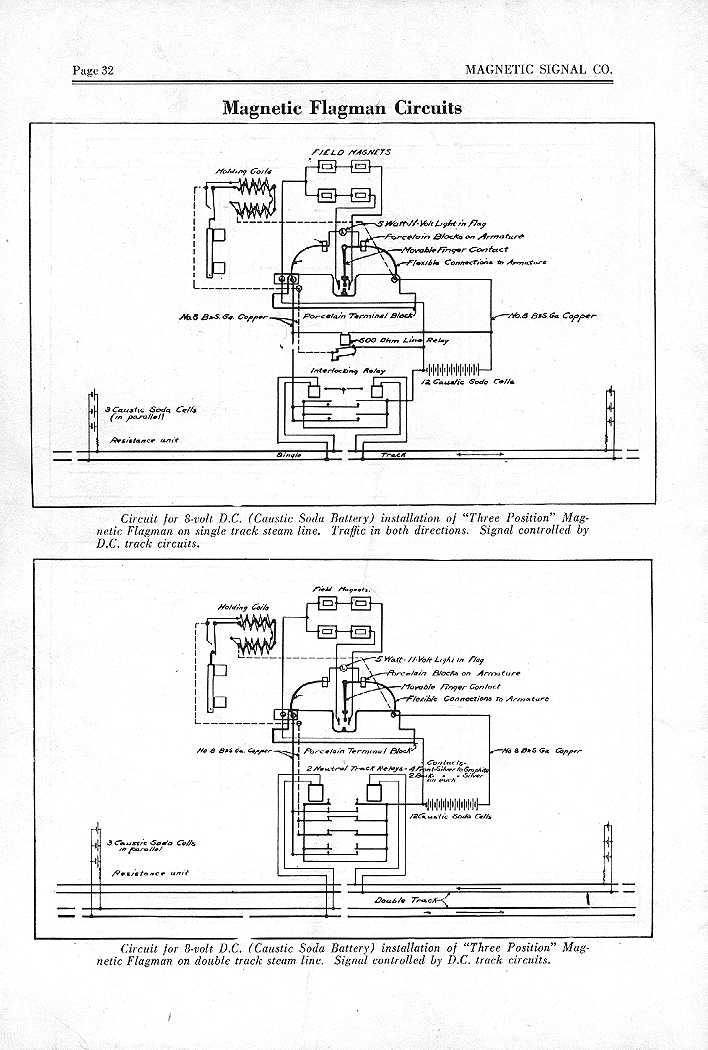

Page 32
