Amtrak Wilmington Shops Private Tour 8/2/2018

by Chris Guenzler

We arrived into Wilmington on Amtrak 176, went down into the station and got our Enterprise rental car then drove out to the Amtrak Wilmington Shops. We checked in at the gate then drove to Building 12 where we met our tour guide Paul Allen Mananger of Mechanical Operations and Kelly Bradigan General Foreman for this unique special tour.

The Wilmington metropolitan area is home to various Amtrak offices and two major heavy maintenance facilities, whose history and current functions are discussed below.

Wilmington Shops

The Wilmington Shops have an especially rich history that dates back more than a century and starts with the Pennsylvania Railroad (PRR). At the dawn of the 20th century, the PRR was one of the nation's most prominent corporations and considered a model for its industry. Its lines stretched from the East Coast through the Mid-Atlantic and Midwestern states as far as the Mississippi River. In an effort to improve its infrastructure, the railroad embarked on an ambitious program to straighten its tracks for increased speed and safety and construct new bridges, viaducts, tunnels and passenger stations that improved capacity and conveyed a sense of permanence.

In the Wilmington area, the PRR, through its subsidiary Philadelphia, Baltimore and Washington Railroad, initiated a construction program that included a new viaduct through downtown, swing bridge over Brandywine Creek, passenger station, office building and equipment shops.

A new maintenance and overhaul facility for steam locomotives and cars was needed because the realigned tracks and new station necessitated the removal of existing downtown facilities along the Christina River. The earliest structures, completed in the mid-19th century, had become outdated and crowded.

The PRR turned to a parcel of land approximately two miles northeast of downtown in a largely undeveloped area known as Todd's Cut. Located between the Brandywine and Shellpot creeks, it included wetlands that were filled with gravel and soil-to an average depth of 10 feet-starting in fall 1902. Following foundation work, brick and steel buildings began to rise the next year, and all the necessary machinery was in place by early 1904.

In an April 1904 article, The Railway Age magazine noted: "The whole plant, from the general layout to the location and power of individual machine tools, is the result of careful design." Among the structures built on-site were a roundhouse, coal trestle, power house and locomotive, blacksmith, paint and car erecting shops. Once completed, the facility could accommodate 35 locomotives and 75 coaches per month for maintenance, repairs and overhaul. All buildings were spaced apart to guard against the spread of fire and allow for the easy movement of materials. They were also designed to be doubled in size if needed in the future.

More than 3,100 piles were driven into the ground at the southern end of the property for the 30 stall roundhouse , which was intended to eventually contain 44 stalls. The $125,000 building had a turntable that measured 75 feet across. The locomotive building encompassed nearly 92,000 square feet and was divided into erecting, machine and boiler/tank shops. The central erecting shop measured 80 feet across and had three pit tracks. Two 65-ton Shaw cranes, each with a span of 78 feet, towered over the erecting bay. In the machine shop, one encountered tools including lathes, shapers and milling machines.

The paint shop, which included a varnish room and tin shop, could hold a maximum 28 coaches. In the car erecting shop were spaces set aside for upholstery and cabinetry. Unlike the other buildings, these two structures featured brick construction with wooden roof trusses.

In conjunction with work on the shop complex, developers started building modest workers' housing in the vicinity of Vandever Avenue at the southern end of the property. Following completion of the PRR's Wilmington improvements, the railroad employed approximately 2,500 city residents in 1915. Those employees were divided among the shops, switchyards and train.

The PRR and its successor Penn Central, borne of the PRR's 1968 merger with the New York Central Railroad, continued to run the Wilmington Shops until 1976. That year Amtrak gained control of the Northeast Corridor as a result of the Railroad Revitalization and Regulatory Reform Act.

Then, as now, the NEC was considered the busiest stretch of railroad in North America. According to the Fiscal Year 1976 Amtrak Annual Report, "The Corridor is responsible for an average of 960 trains a day, including over 120 Amtrak intercity passenger trains, nearly 660 commuter trains...and more than 170 Conrail freight and mail trains." Today, that number has more than doubled to 2,000 Amtrak, commuter or freight trains traveling over some portion of the NEC each day.

The NEC purchase included the majority of the 457 route miles between Boston and Washington, excluding sections that Penn Central had previously sold. In addition, Amtrak obtained more than 100 railroad stations as well as maintenance shops and rail yards to service locomotives and rolling stock.

Today, the Wilmington Shops remain the primary facility for the maintenance, repair and overhaul of electric locomotives used on the NEC, including the Amtrak Cities Sprinters (ACS-64s) that began entering revenue service in 2014 and the high-speed Acela Express power cars. Skilled employees perform truck repair, wheel work, HVAC work, traction motor repairs and component repair and remanufacturing work.

Our Tour

Before we started we went over safety rules and were given safety glasses and hard hats to wear. We had to ask if we could take pictures of anything inside the shops. In one shop building we had to use ear protection. Safety is Number One Rule in this building. With that, we started our private tour.

We started with a picture in the office taken by Don Wood back in the 1950's showing the Wilmington Shop full of Pennsylvania Railroad GG-1s. We went into the locomotive shop next.

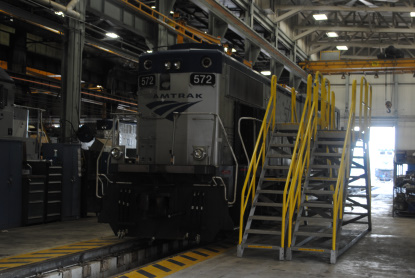

Amtrak GP15D 572 built in 2004 by Motive Power Industries in for rebuilding.

Also in for work are Amtrak GP38-3 724 built by EMD in 1976 and Amtrak MP15D 570 built in 2004 by Motive Power Industries.

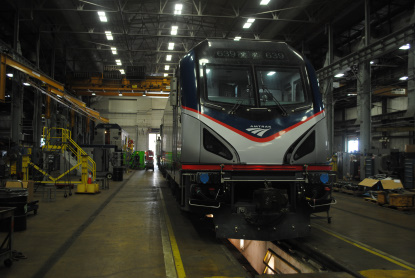

Amtrak ACS-64 639 built by Siemens in 2015. They told us that Amtrak thinks Siemens did an outstanding job of building these and Amtrak has had no major problems with any of them. We then went into the cab of this locomotive.

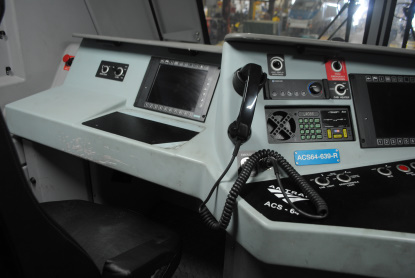

The cab controls of Amtrak ACS-64 639. These units have a central aisle which makes maintaining them much easier than any other kind of engine.

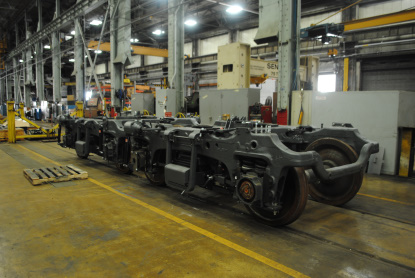

Next we went into the truck shop. Then we went outside.

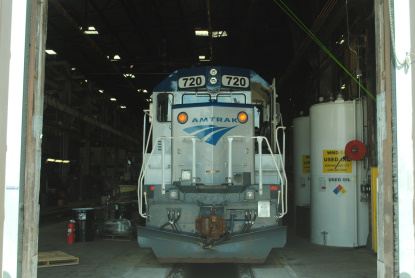

Amtrak GP38-3 720 built by EMD in 1976 in the locomotive shop bay door.

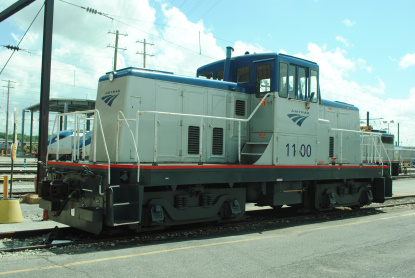

Amtrak 80-ton shop switcher 1100 built by General Electric in 1952.

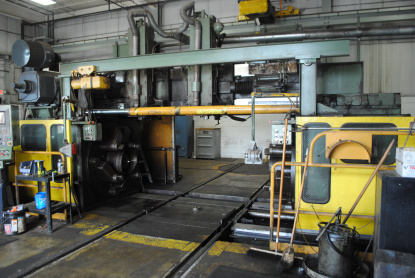

Next we went into the Wheel Shop where we saw the Wheel Lathe.

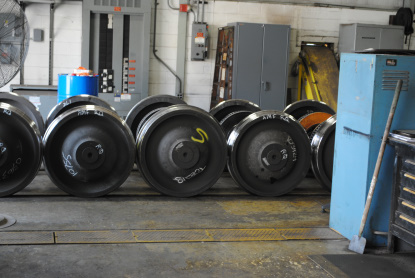

Wheel sets with an "S" mean the wheels are to be scrapped.

A new set of wheels and axles ready to be used.

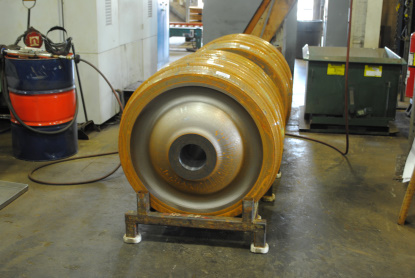

New wheels.

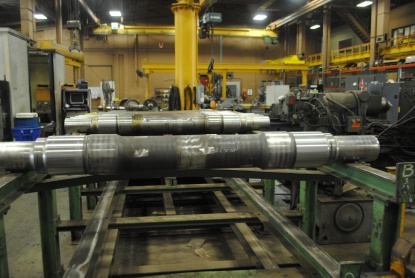

Rebuilt axles.

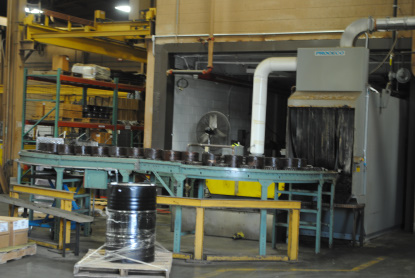

A washing parts machine.

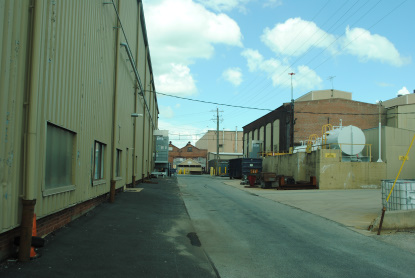

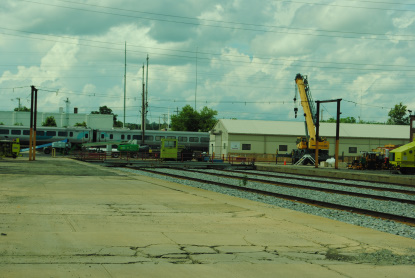

Next we walked outside to our next destination. That is the old steam power house on the right converted to electric energy.

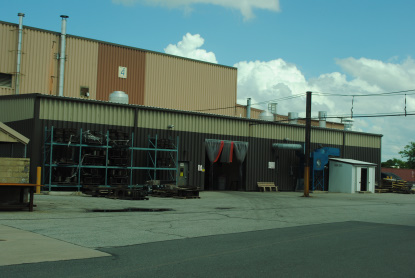

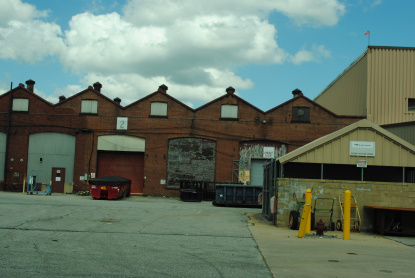

Building two was the old car shop building.

We next toured the electric shop building.

After that we saw the transfer table then walked back through the electric shop building and by the locker rooms to an Acela Express train set. They are replacing seats on all the Acela Express train set and this train is due to go back into service very soon.

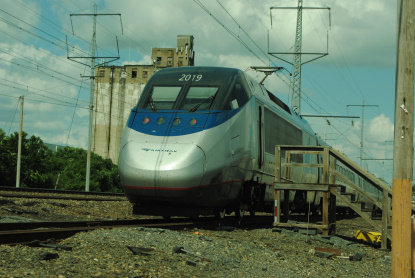

Acela Express power car 2019. From here we went back into Building 12 but went upstairs to the Conference Room.

Fantastic pictures of Amtrak trains hang on the walls in this room.

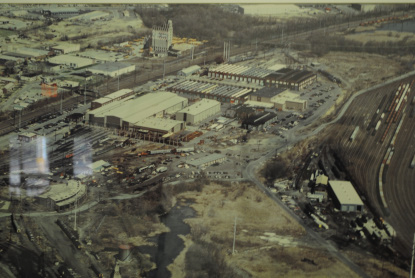

This last thing we saw we an aerial picture of the Wilmington Shops. We thanked our hosts and then we left the Amtrak Wilmington Shops.

We drove US 13 to Interstate 95 then US to 40 to Interstate 295 to US 130 to the Travelers Inn where we spent the night. We ate dinner at the Dayton Diner where I had a steak that really hit the spot. I worked on the story then called it a night.
