MANISTIQUE & LAKE SUPERIOR RAILROAD

EQUIPMENT PAINT AND LETTERING DRAWINGS

All of these drawing original found in very poor condition, they were photographed and copies make via copy machine of the early 1960. I scanned the 81/2 x 11 copies and have tried to recover as much information as possible from each. Some section are are completely redone, readable parts are original, background with no information was changed to white to save ink when printing.

List of paints and code used by Wabash System in the early 1960s PAINT CODES

a

MANISTIQUE & LAKE SUPERIOR

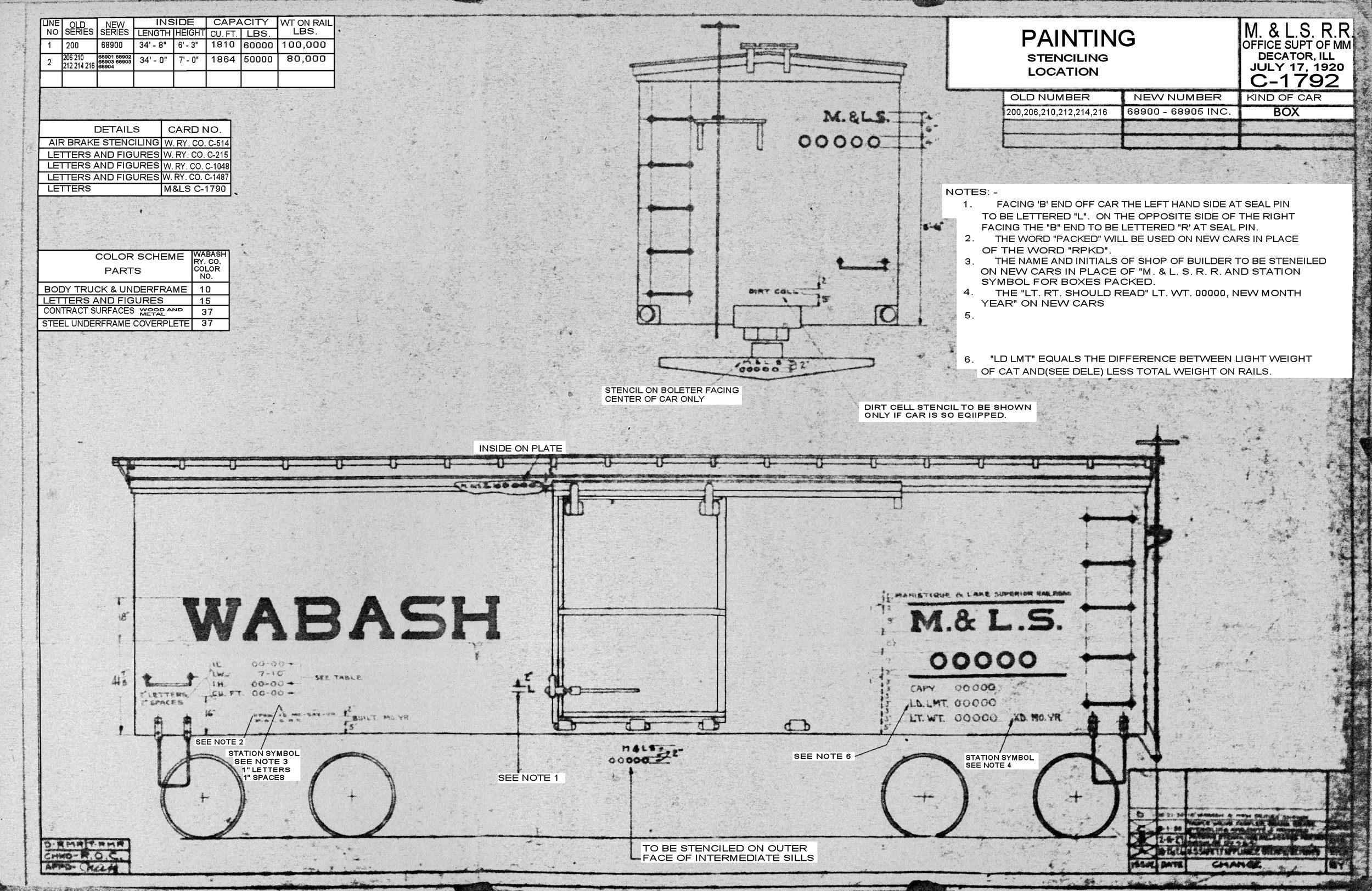

• C1792 – BOX CARS

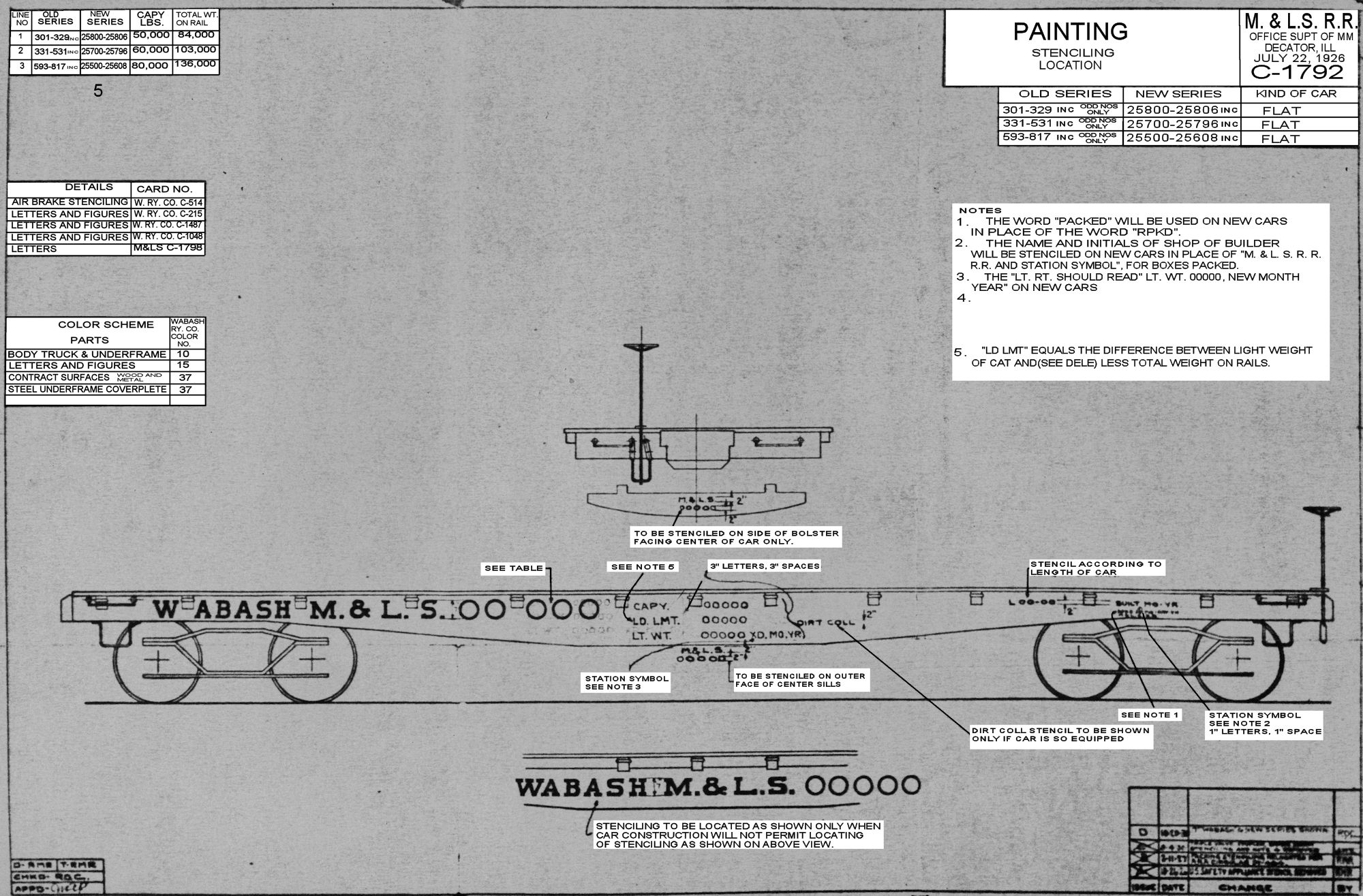

• C1794 – FLAT CARS

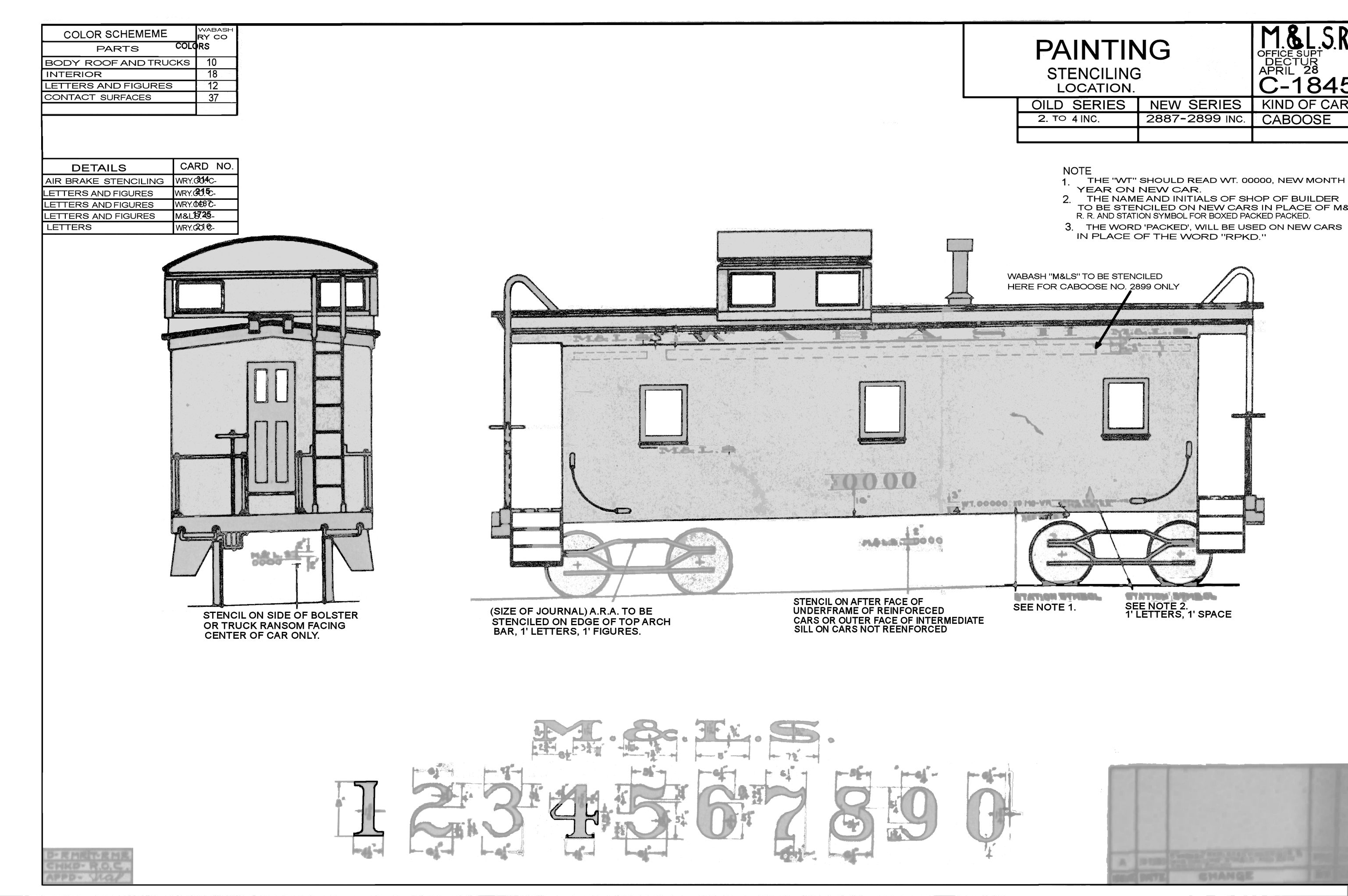

• C1845 – WOOD CABOOSES

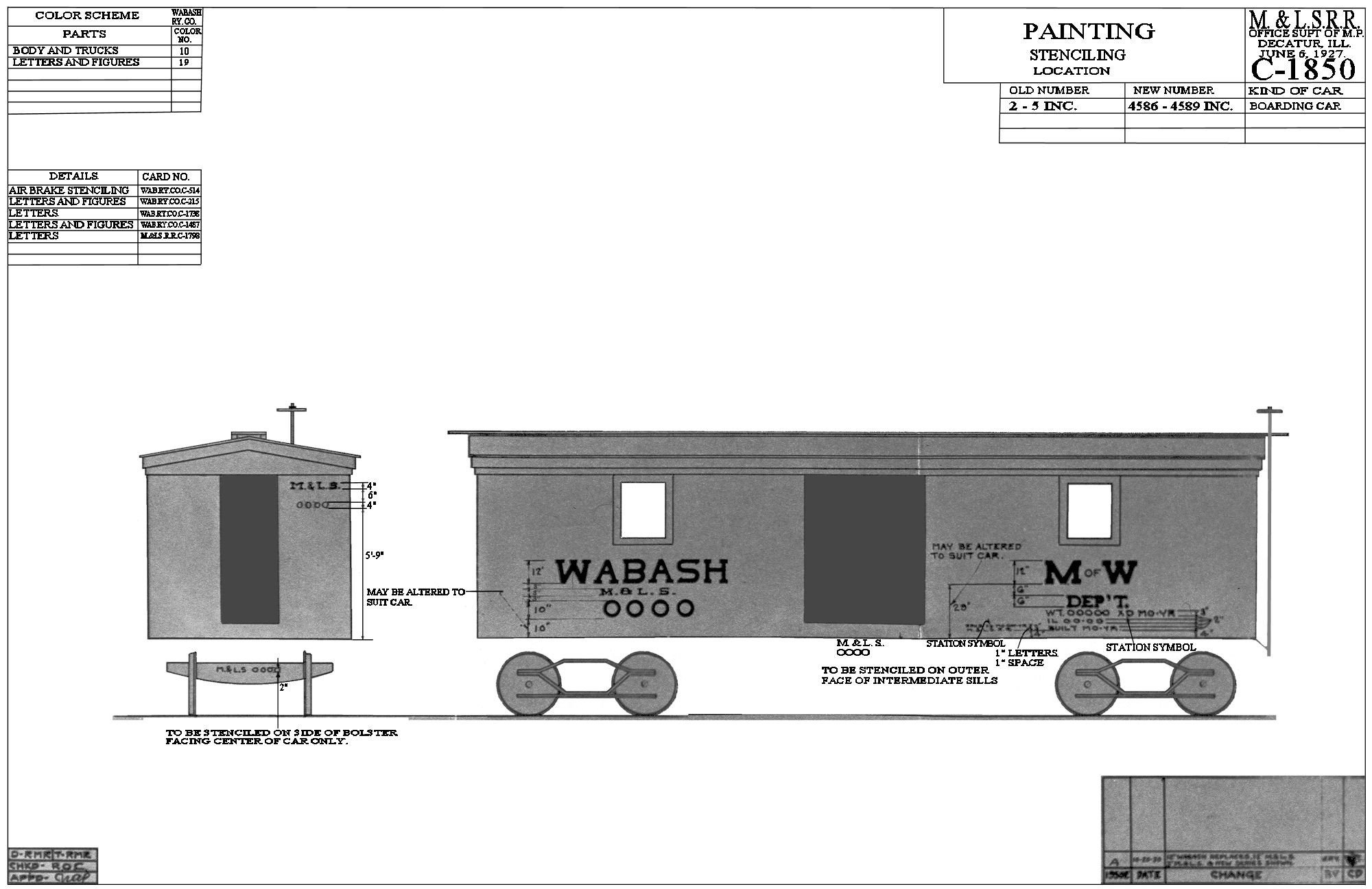

• C-1850 – M of W BOARDING CAR – OLD - 2-5 NEW 4586-4589 (YEAR1927)

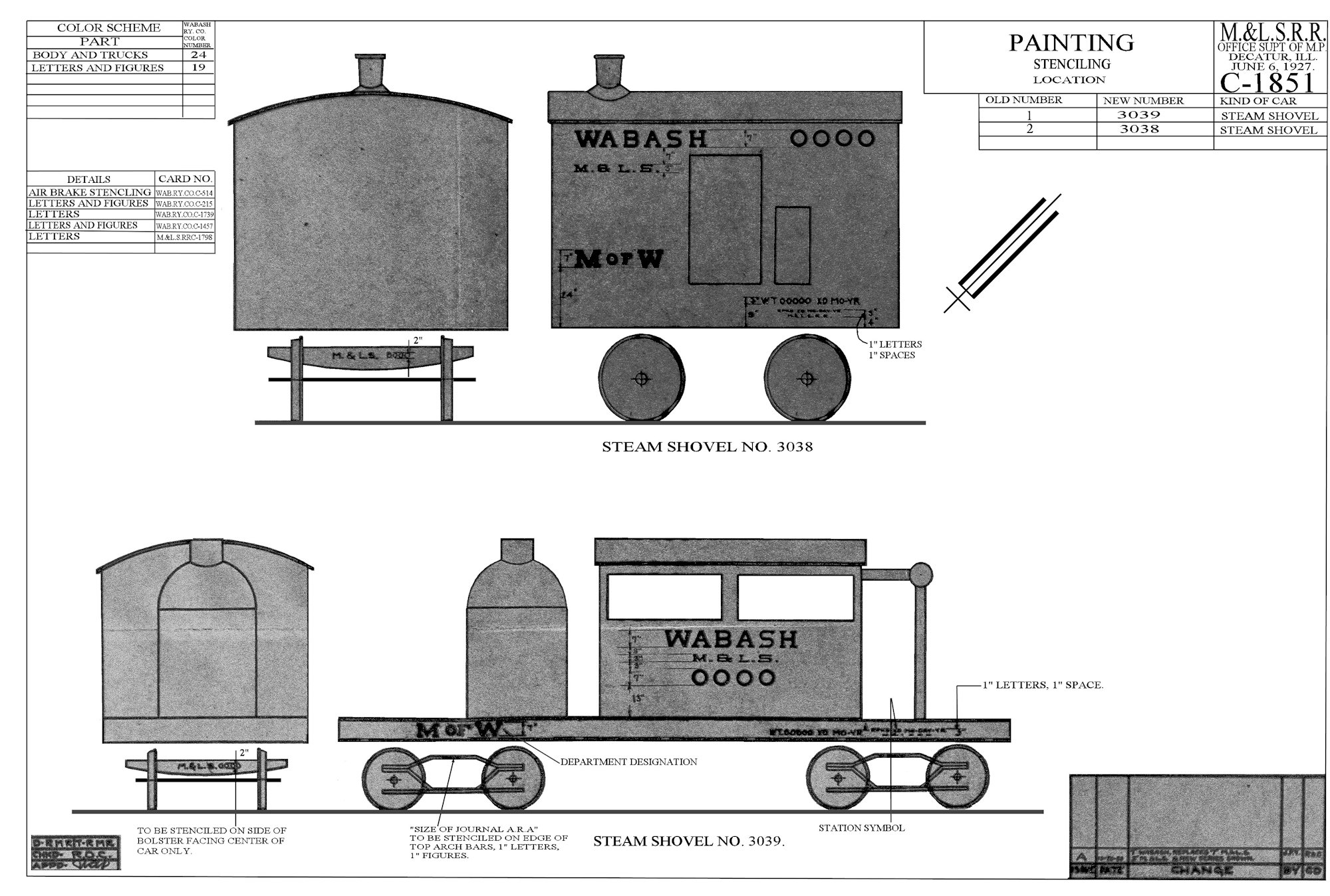

• C-1851 - STEAM SHOVELS OLD 1&2 RENUMBERED 3039,3038 (1927)

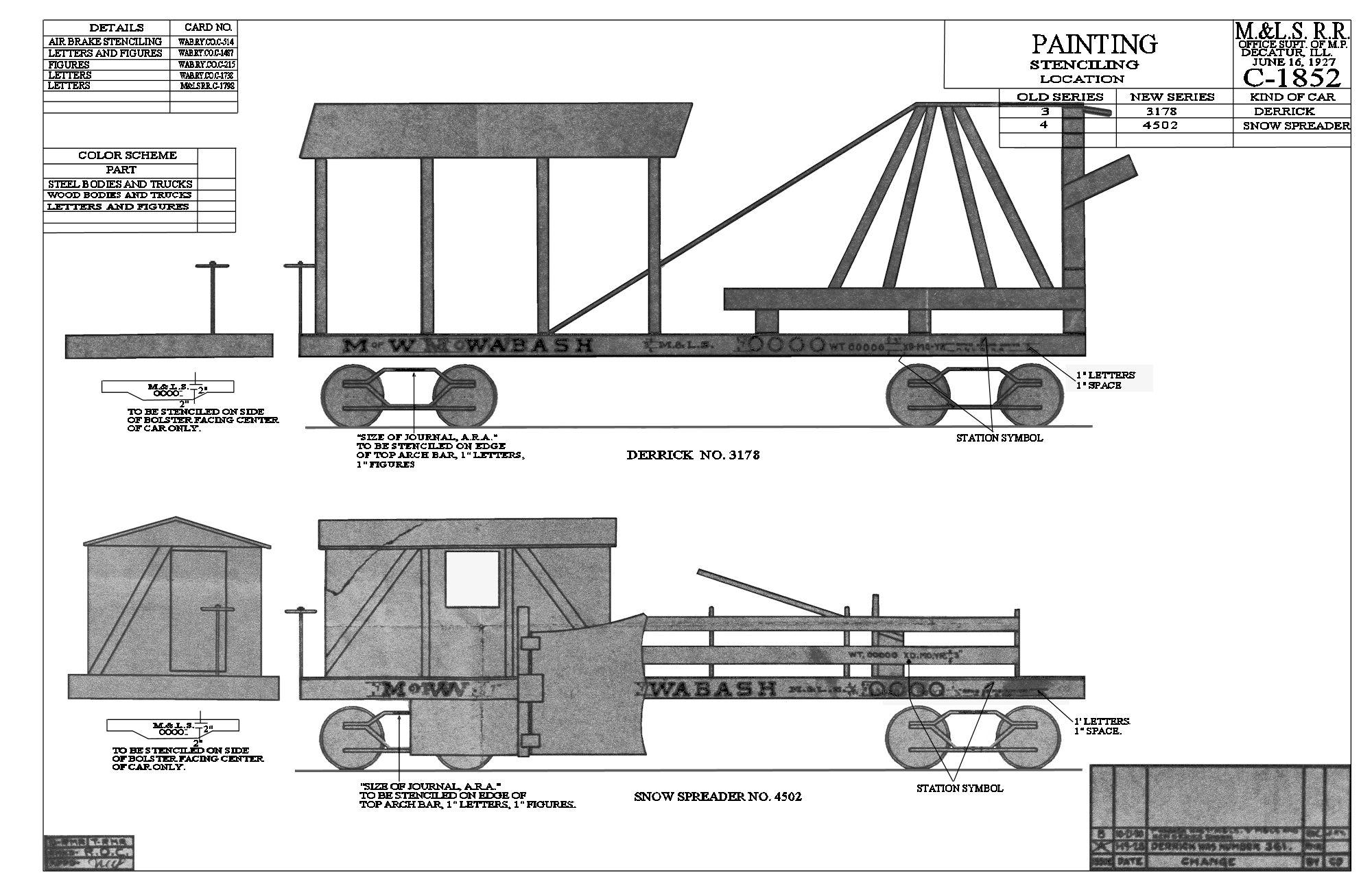

• C-1852 – DERRICK NO. 3178 EX NOS. 3, 364, SNOW SPREADER NO. 4502 EX NO. 4 (YEAR 1927)

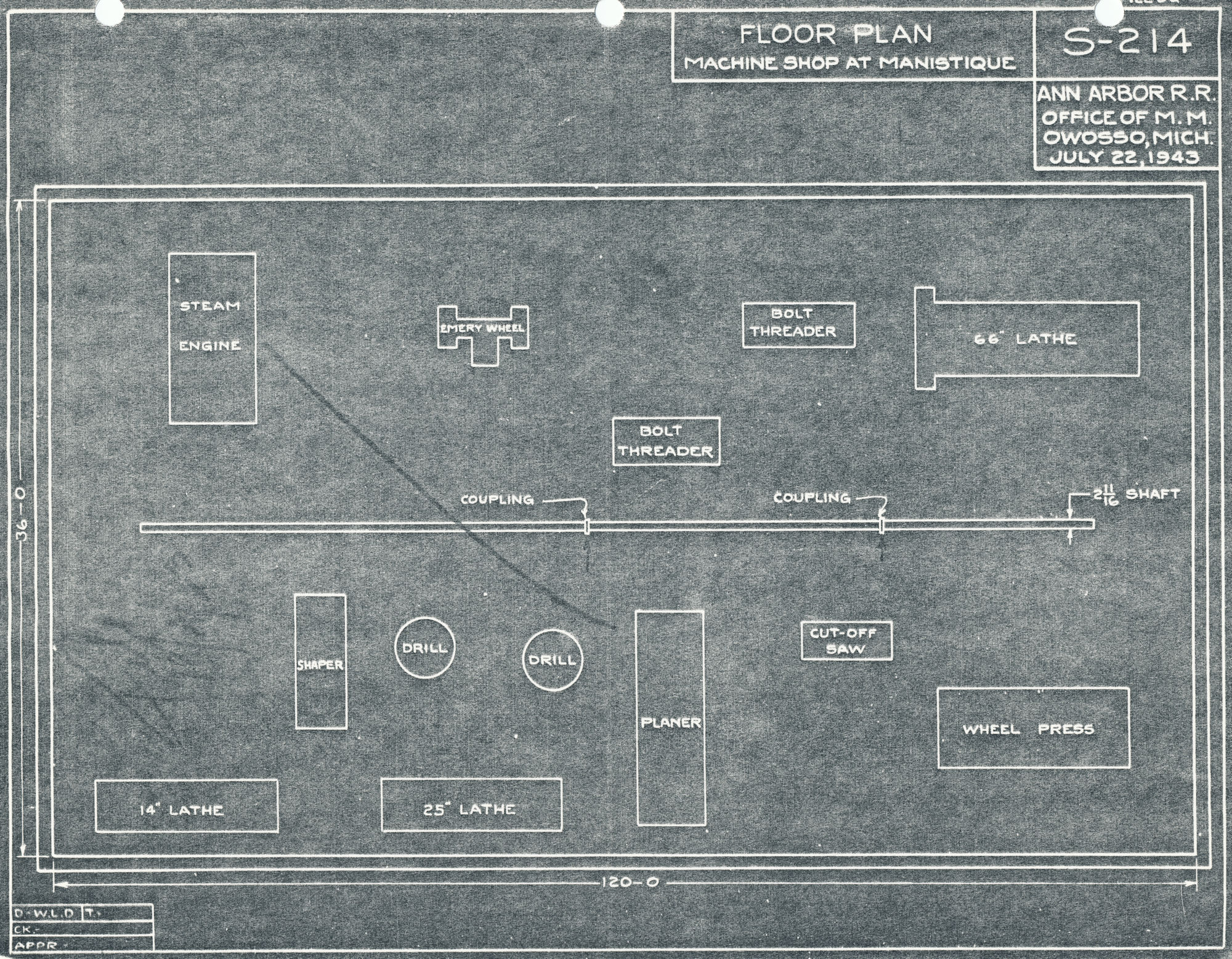

• S-214 FLOOR PLAN MACHINE SHOP AT MANISTIQUE (1943)
