ANN ARBOR RAILROAD 1920s

EQUIPMENT PAINT AND LETTERING DRAWINGS

All of these drawing original found in very poor condition, they were photographed and copies make via copy machine of the early 1960. I scanned the 81/2 x 11 copies and have tried to recover as much information as possible from each. Some section are are completely redone, readable parts are original, background with no information was changed to white to save ink when printing.

List of paints and code used by Wabash System in the early 1960s PAINT CODES

a

• C-1785 BOX CAR 6000 SERIES (YEAR 1926)

• C-1786 GONDOLA – STEEL (YEAR 1926)

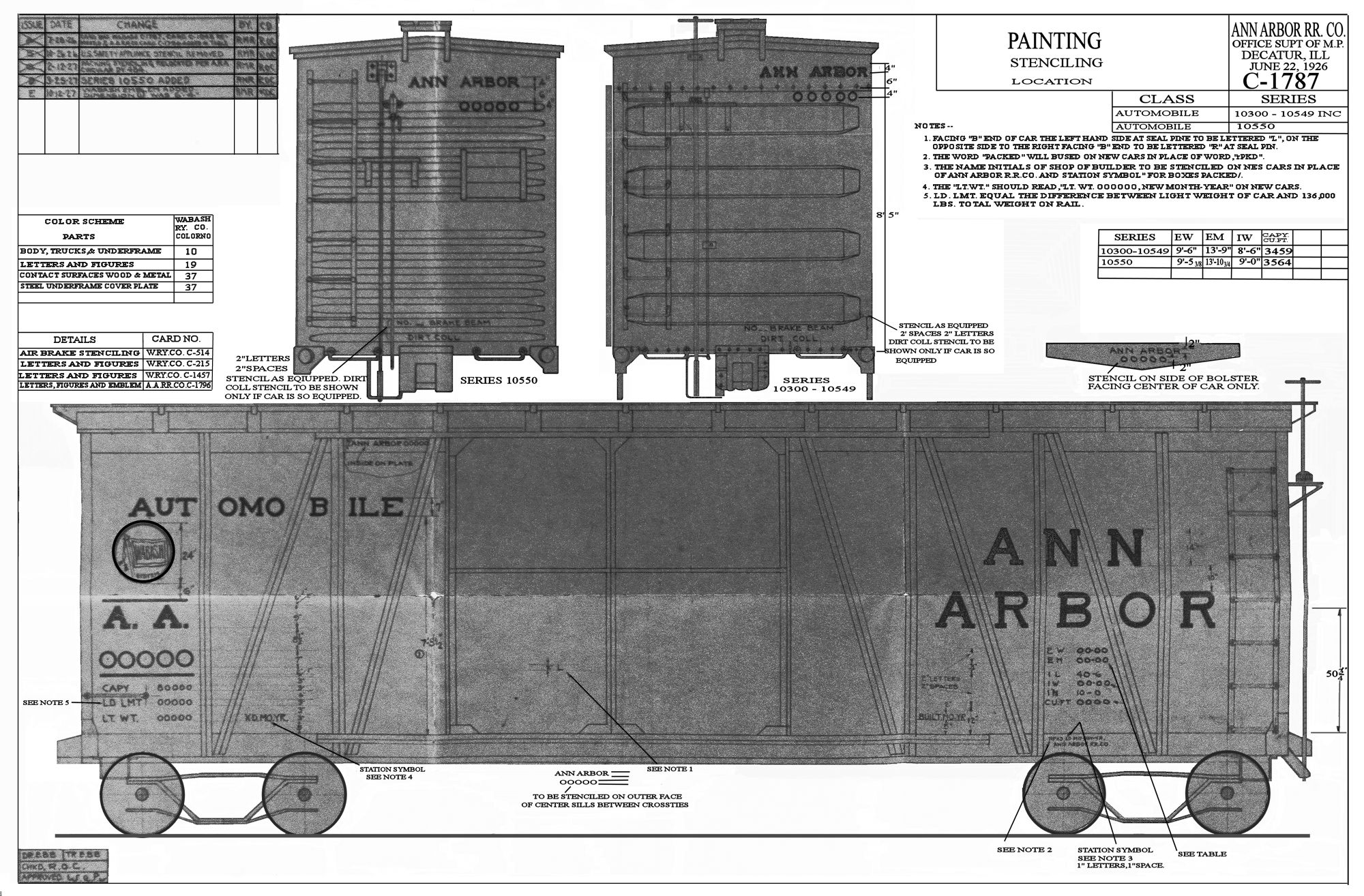

• C-1787 AUTOMOBILE SERIES 10300-10549, and SERIES 10550 (YEAR 1926)

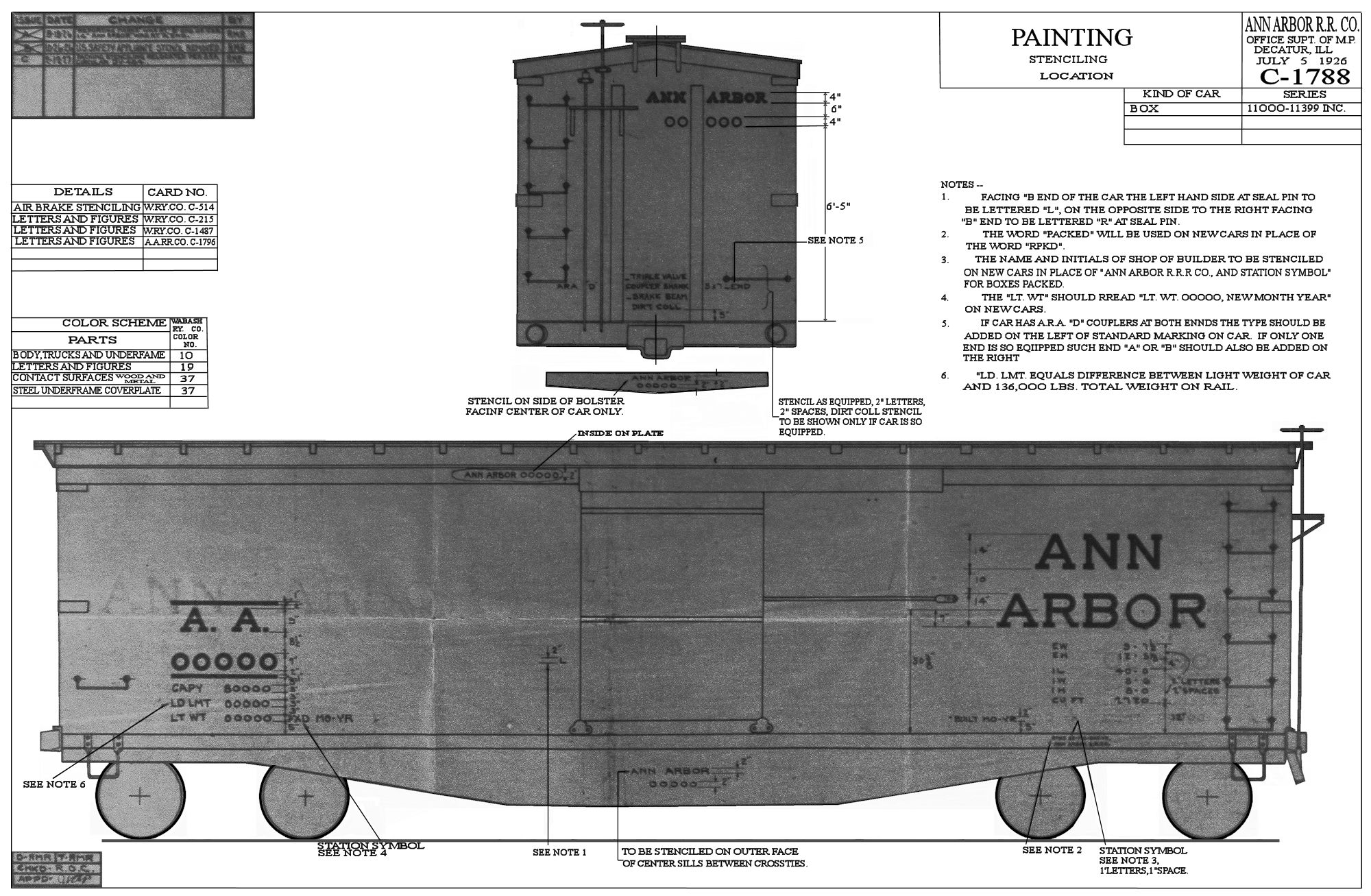

• C-1788 BOX CAR SERIES 11000-11399 INC. (1926)

• C-1789 REFRIGERATION – (YEAR 1925)

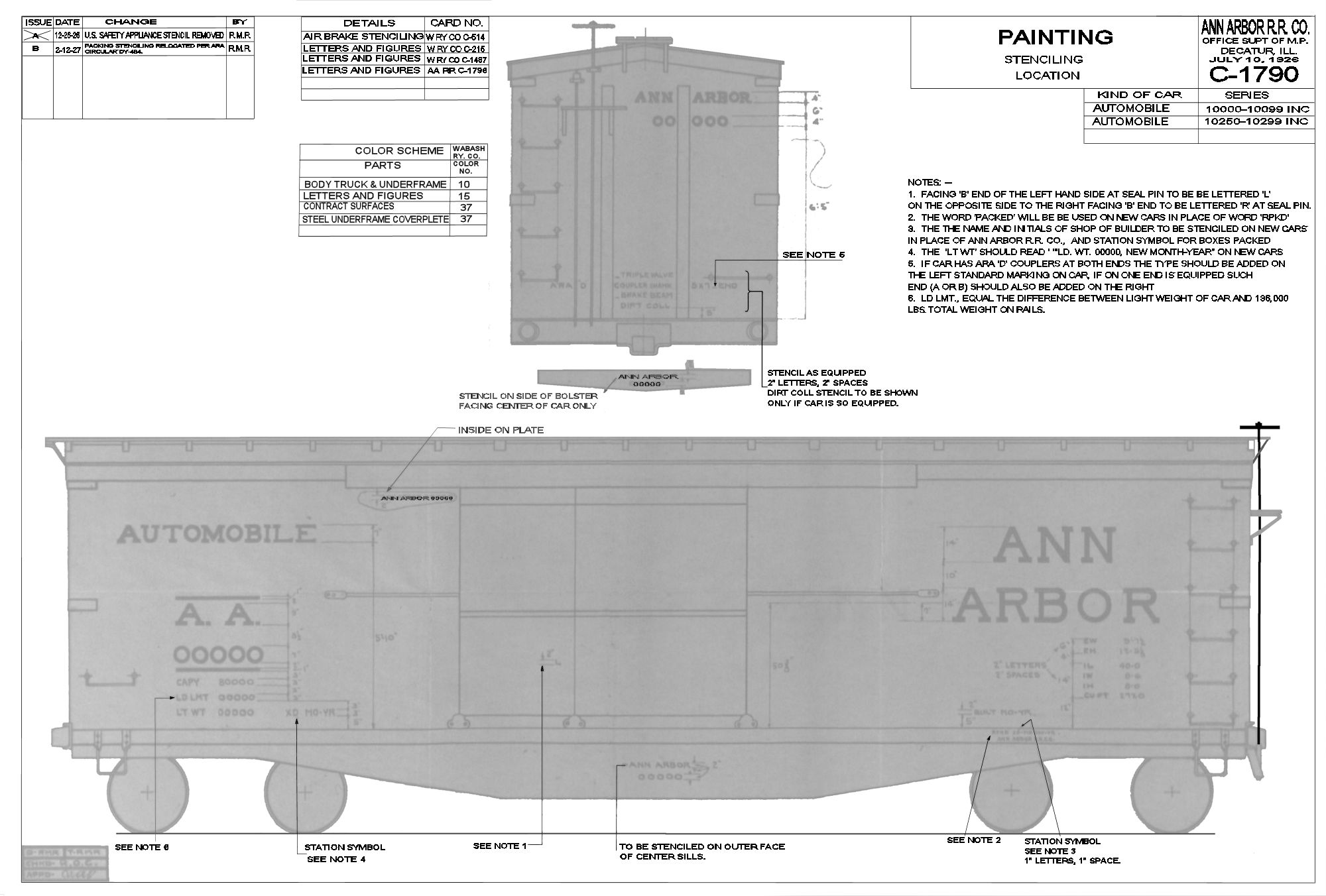

• C-1790 BOX CAR – AUTOMOBILE 10000-10250 & 10250-10299 (YEAR 1929)

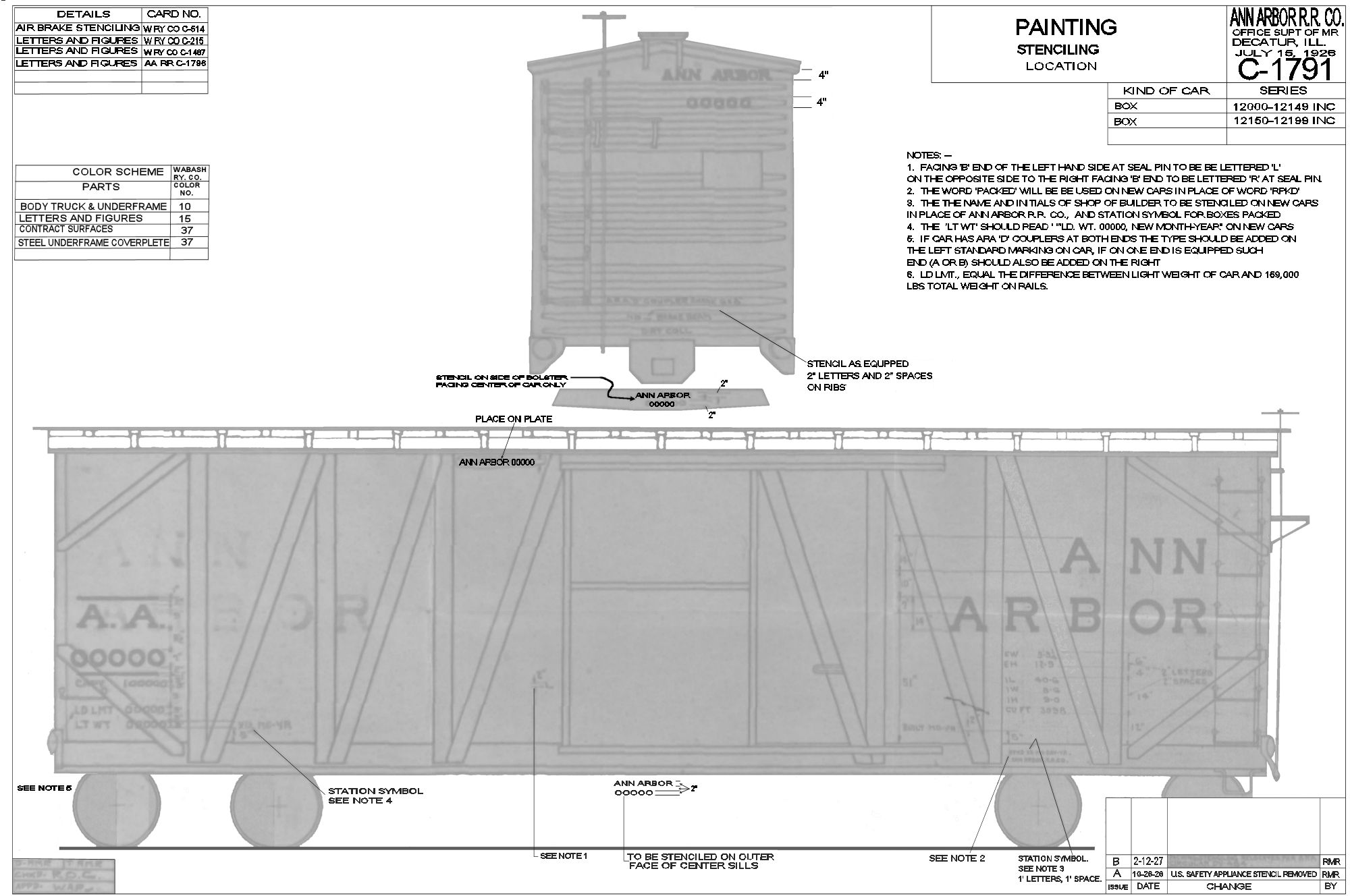

• C-1791 BOX CAR OB – 12000-12149 AND 12150-12199 (YEAR 1926)

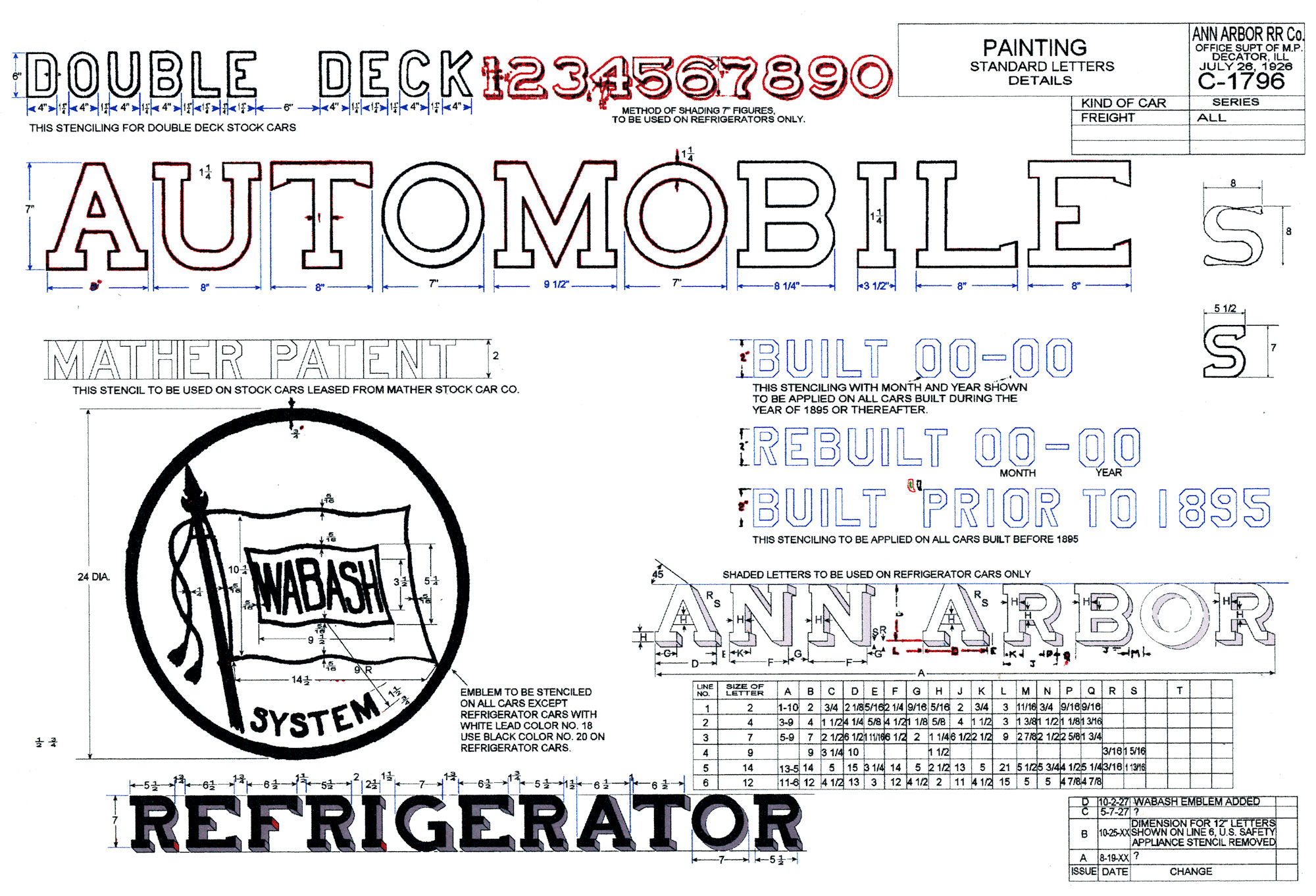

• C-1796 STANDARD LETTERS (YEAR 1926)

• C-1799 GONDOLA - WOOD (YEAR 1926)

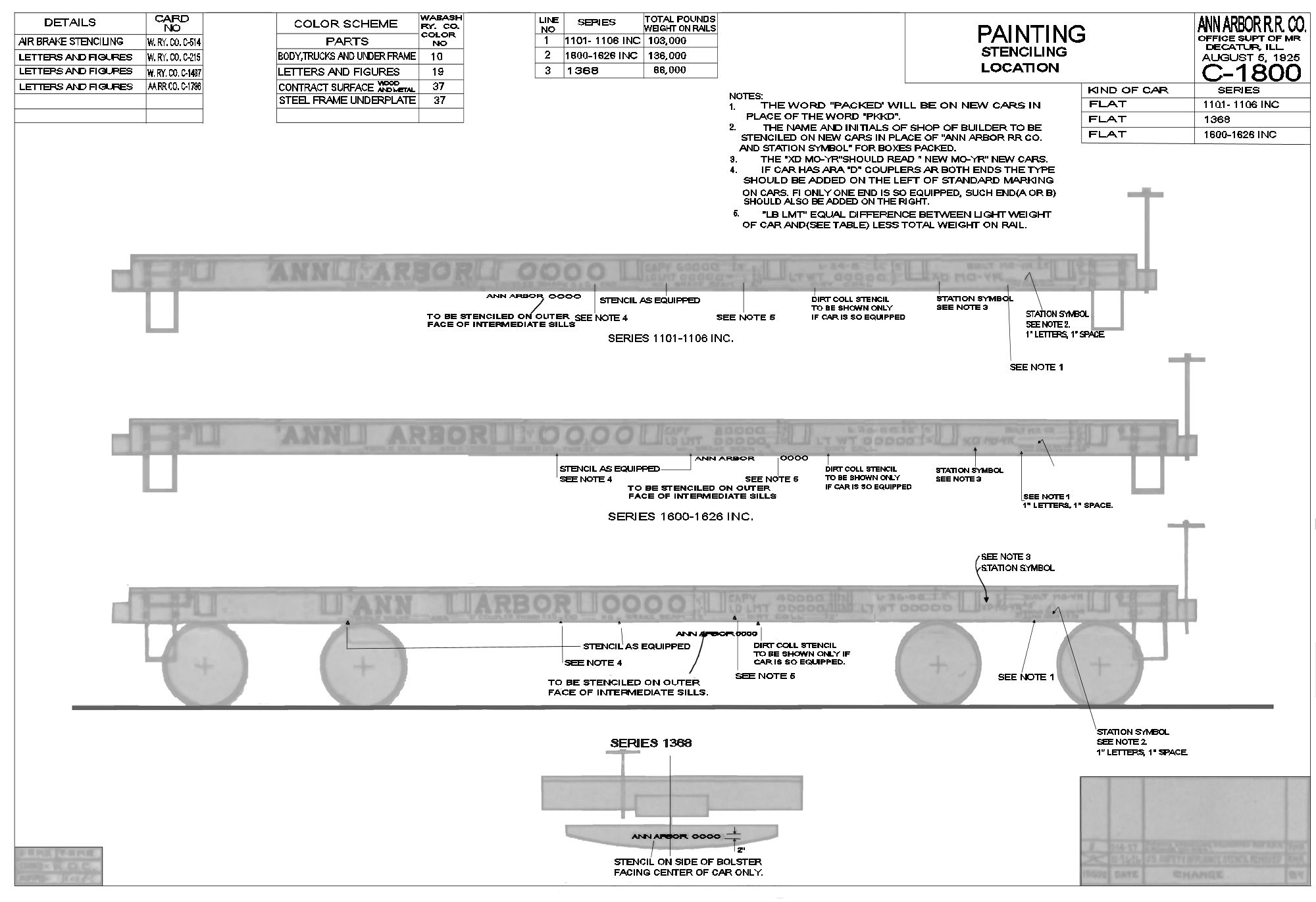

• C-1800 FLAT CAR – WOOD SERIES 1101-1106, 1600-1626, 1368 (YEAR 1926)

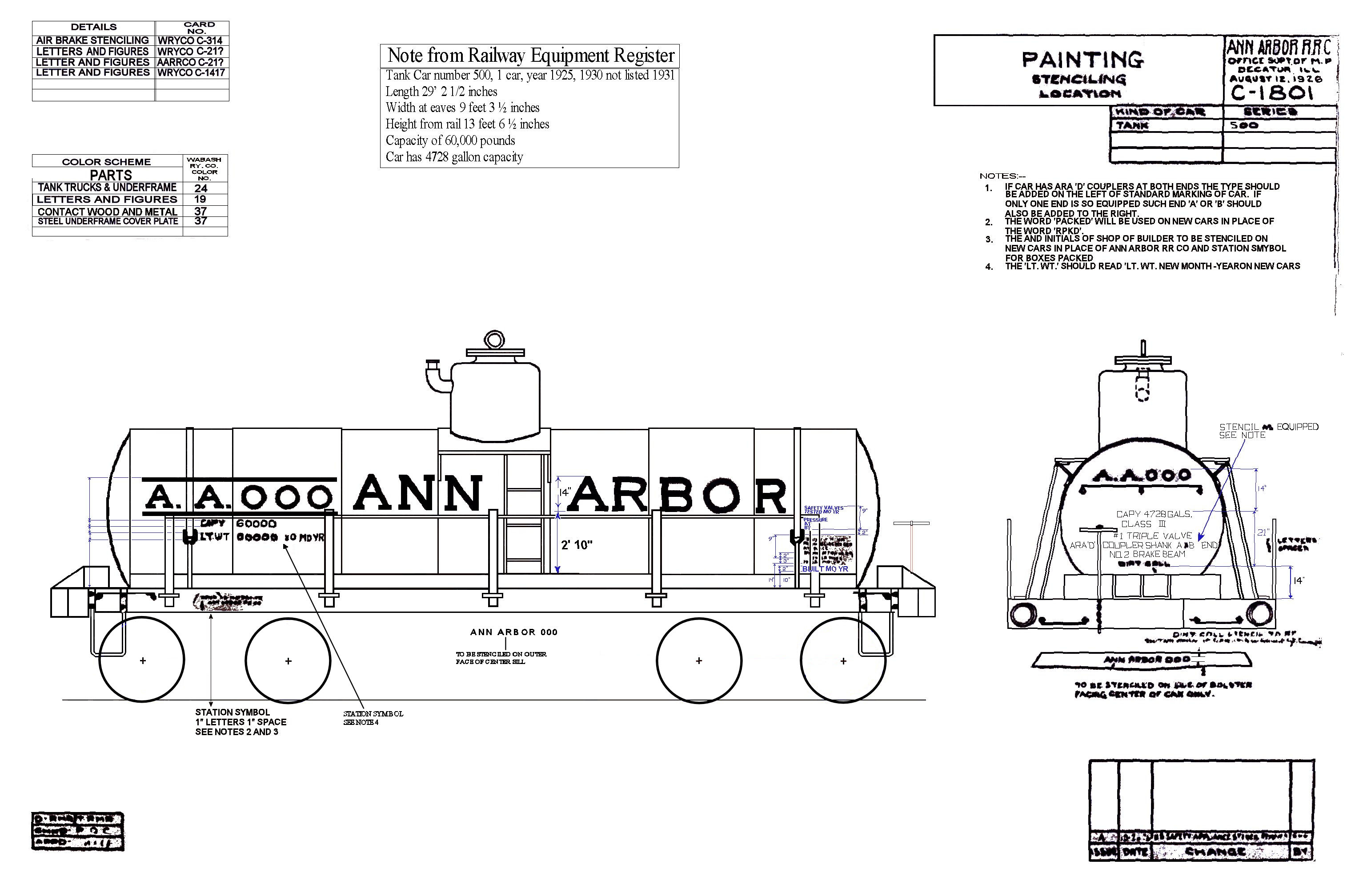

• C-1801 TANK CAR SERIES 500 (YEAR 1926)

• C-1802 BOX CAR SERIES 11400 (YEAR 1926)

• C-1803 CABOOSE SERIES 2 – 23 (YEAR 1926)

• C-1807 STOCK CARS SERIES 700-740 (YEAR 1925)

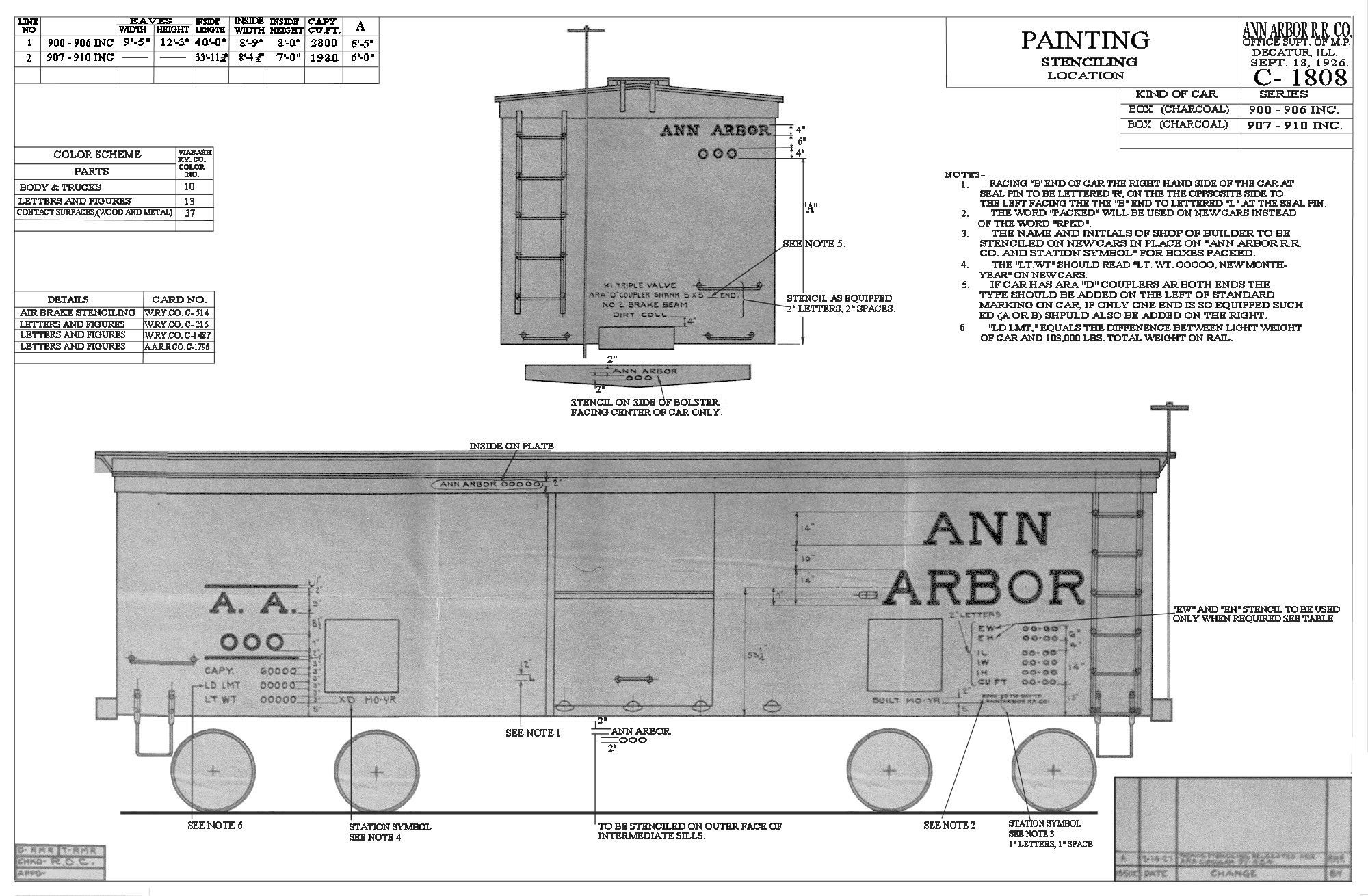

• C-1808 BOX CAR SERIES 900-910 CHARCOAL CARS (YEAR 1926)

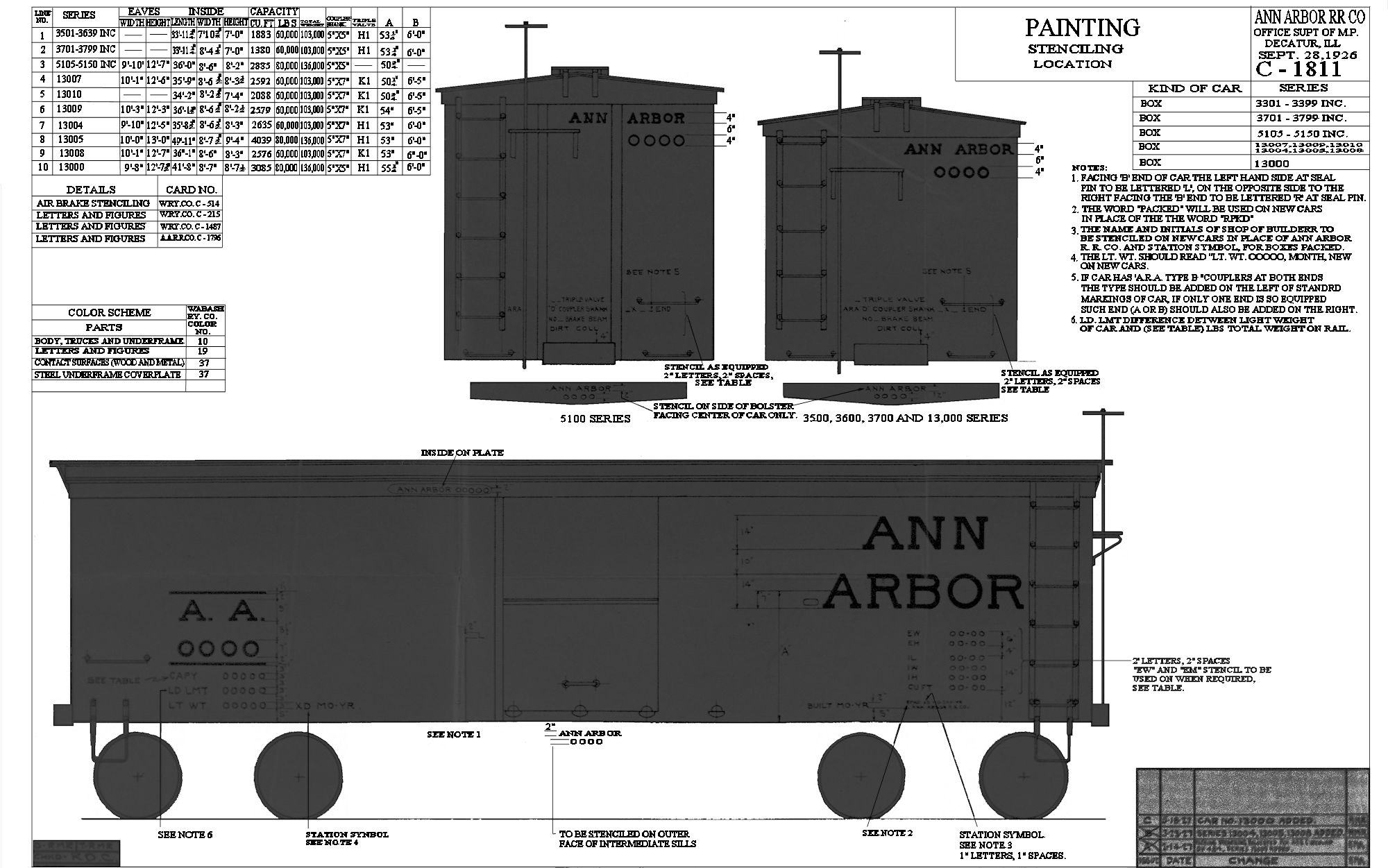

• C-1811 BOX CARS SERIES MULTI (YEAR 1926)

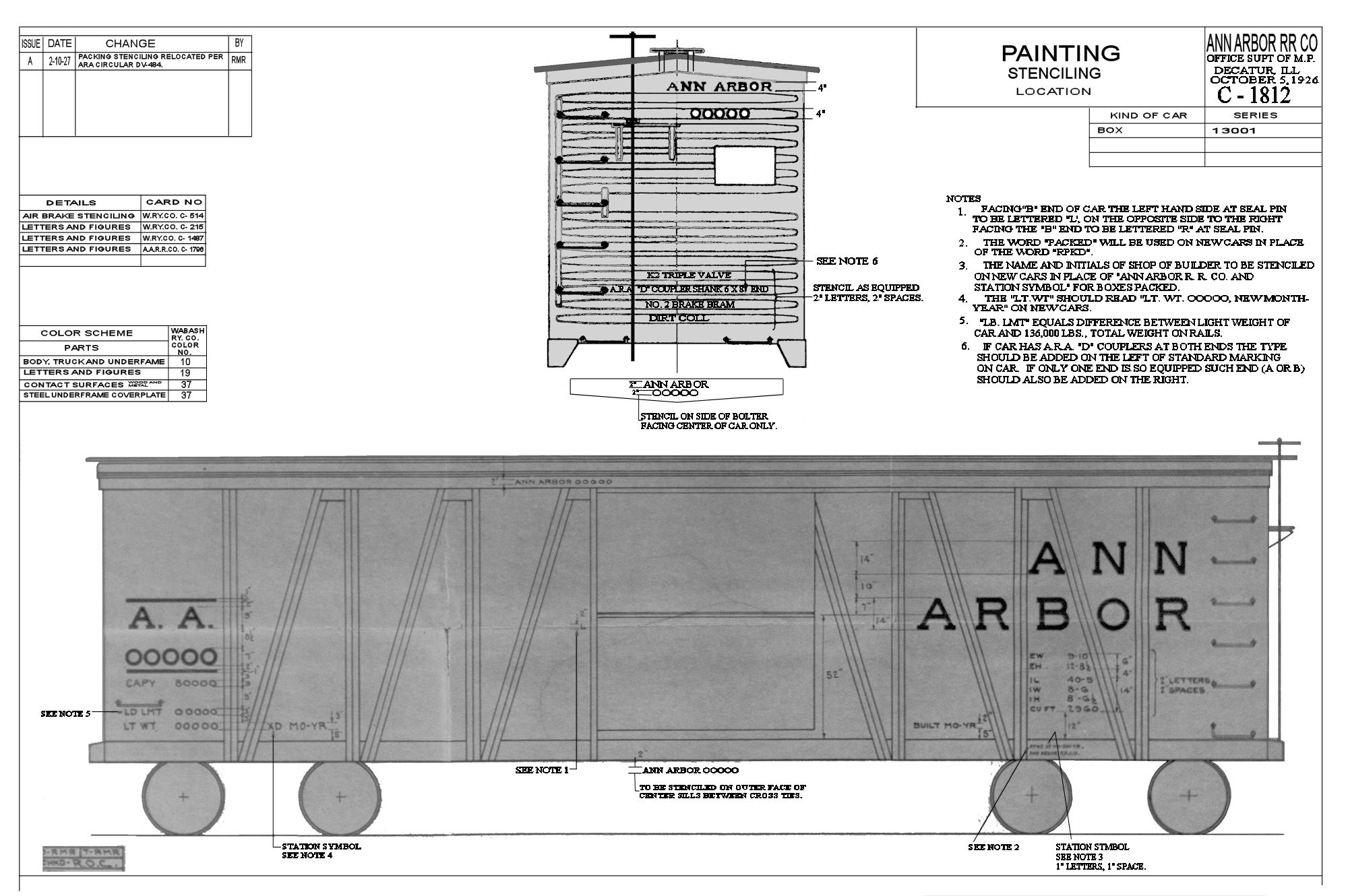

• C-1812 BOX CAR 13001 (YEAR 1926)

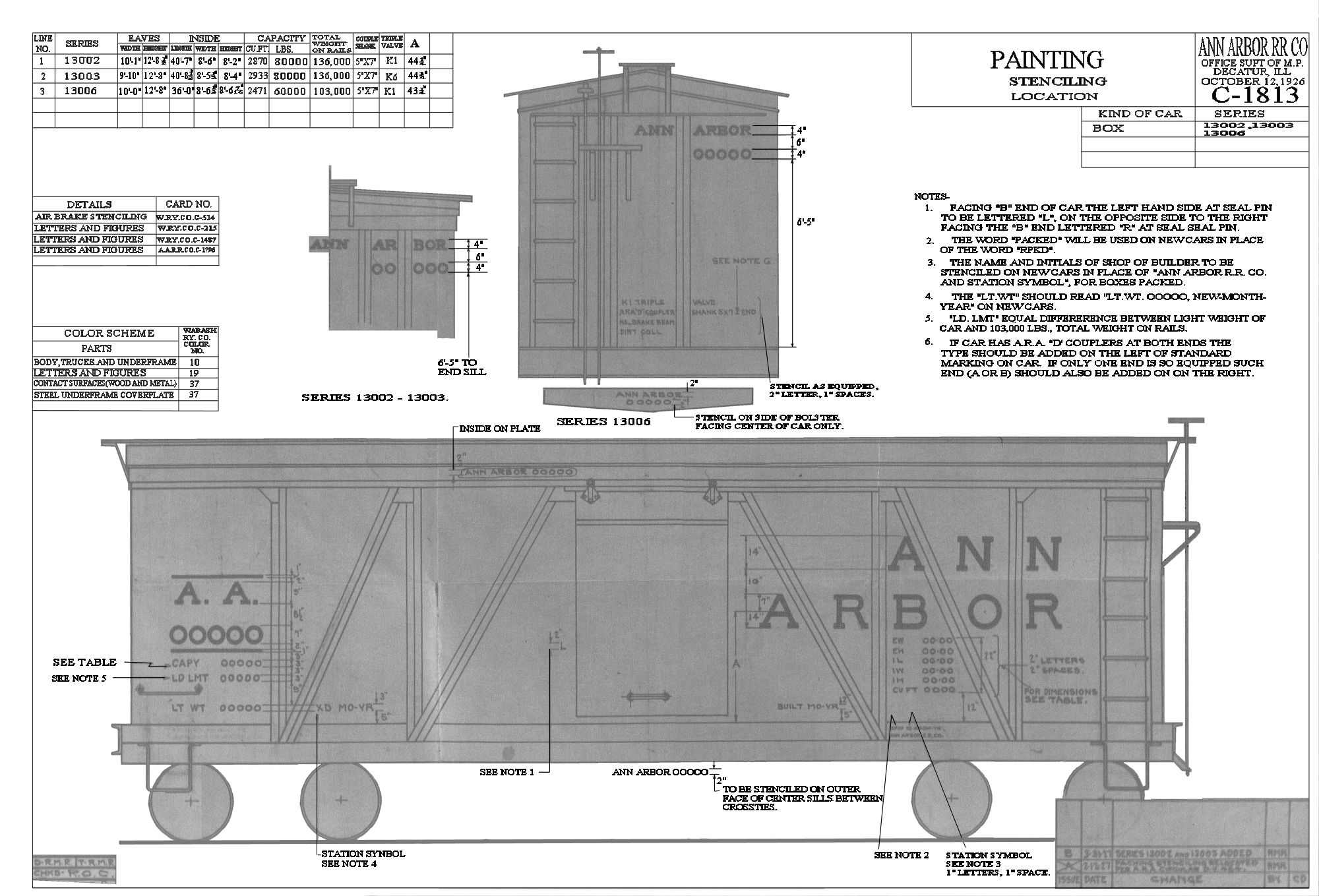

• C-1813 BOX CAR SERIES 13002,3,6 (YEAR 1926)

• C-1832 STOCK CAR SINGLE DECK SERIES 800-844 (YEAR 1927)

• C-1833 STOCK CARS SERIES SINGLE DECK 600-644 DOUBLE DECK 645-648 (YEAR 1927)

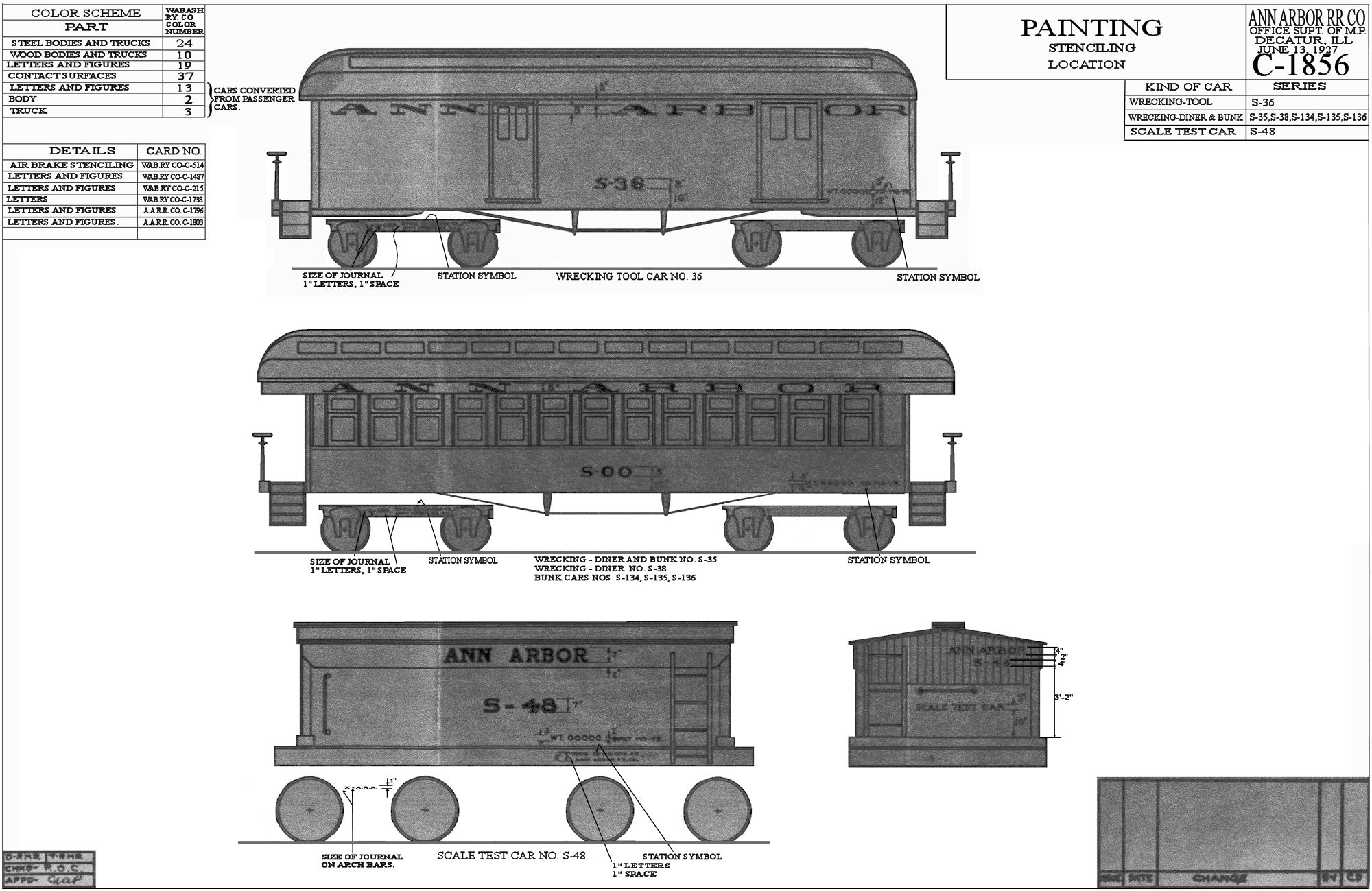

• C-1856 WRECKING-TOOL S-36, WRECKING-DINER & BUNK S-35, S-38, S-134, S-135, S-136, SCALE TEST CAR S-48

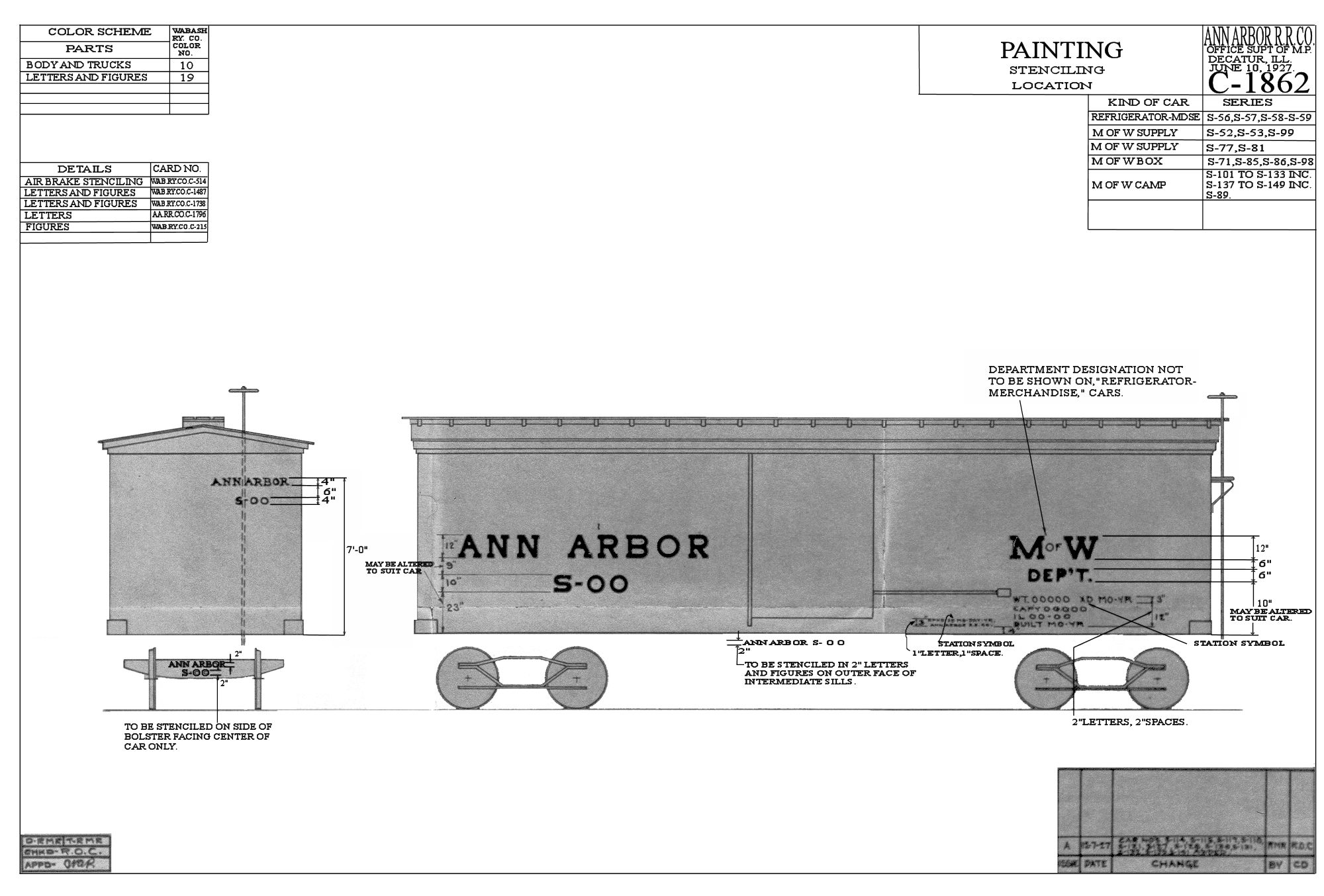

• C-1862 M OF W CARS - SUPPLY, BOX, CAMP AND REFRIGERATOR-MDSE CARS ASSIGNED TO TO M of W – ALL 'S' SERIES (1927)

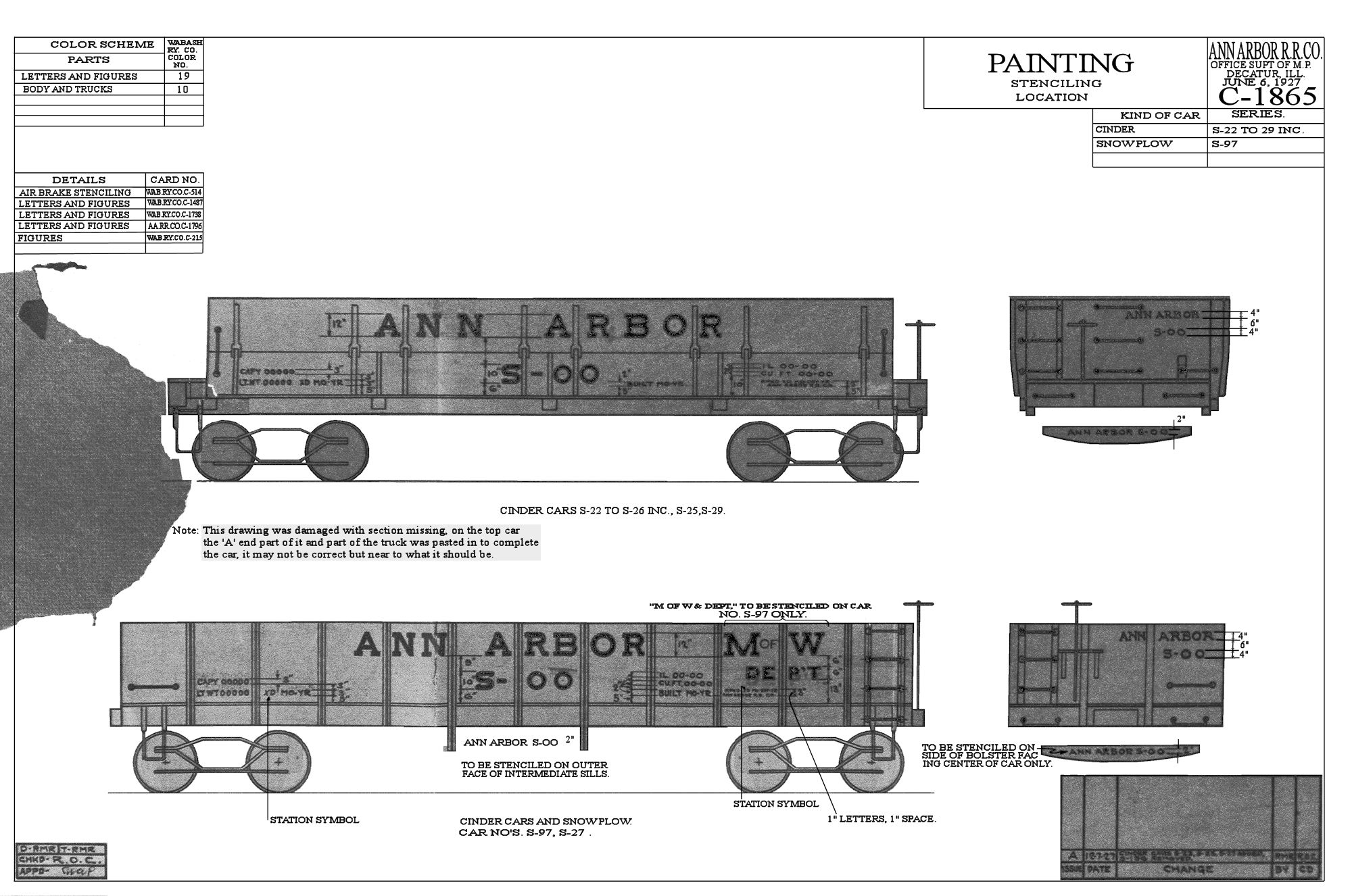

• C-1865 CINDER CARS S-22 TO S-29 – SNOW PLOW CAR S-97 (1927)

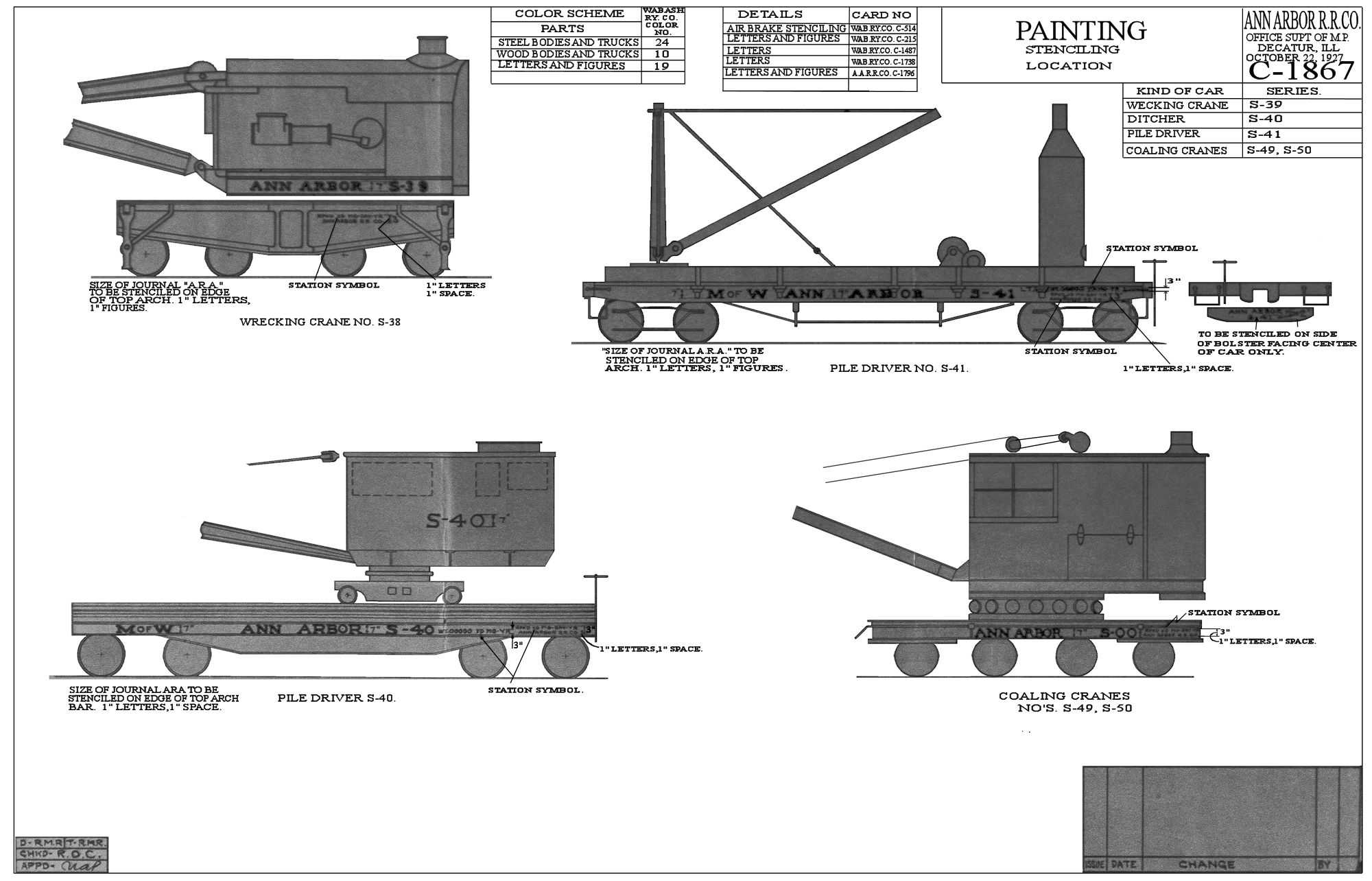

• C-1867 STEAM CRANES: WRECKING S-39, DITCHER S-40, PILE DRIVER S-41, COALING S-49, S-50 (YEAR 1927)

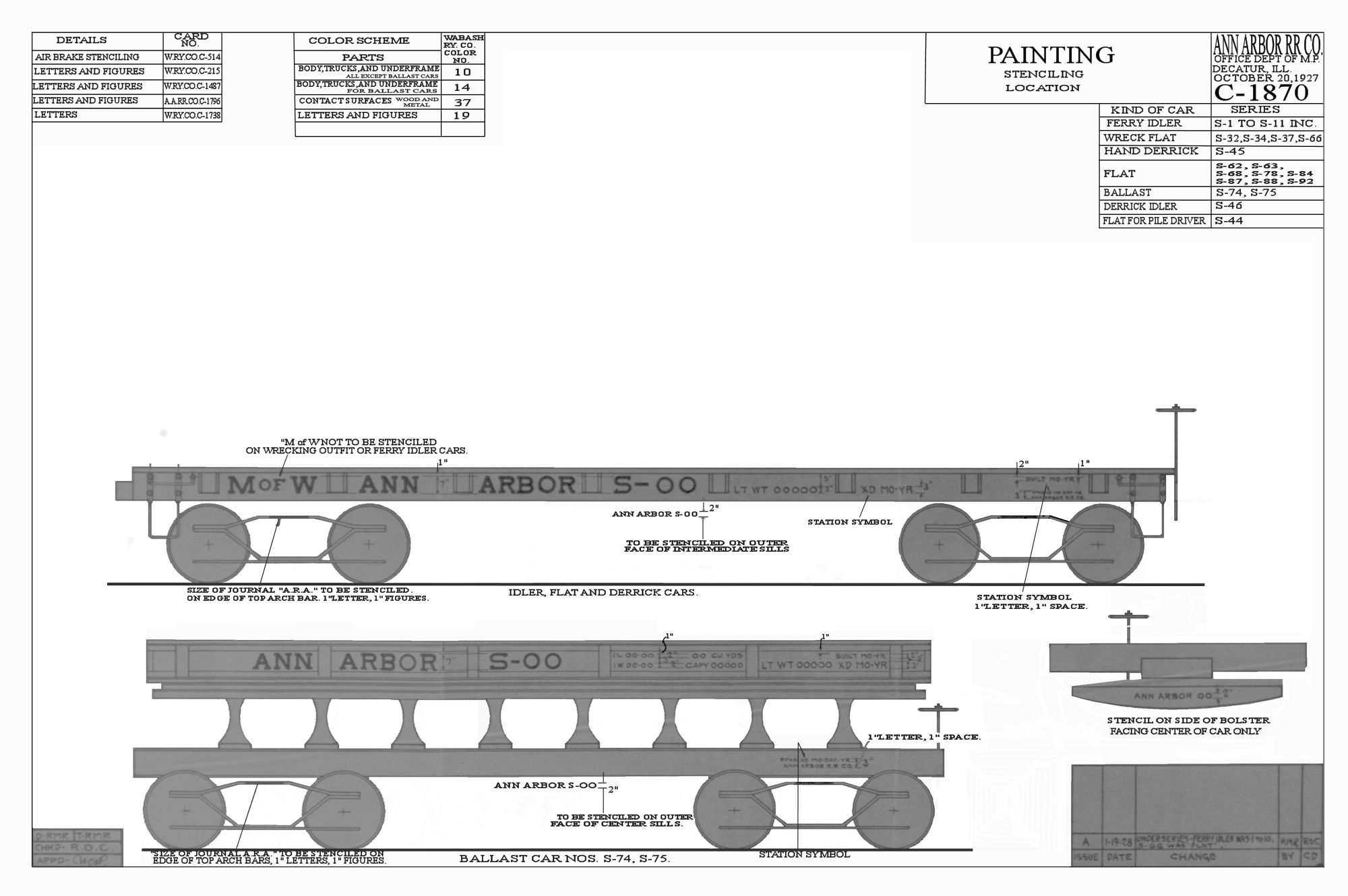

• C-1870 FLAT CARS S-1 TO S-11, S-32, S-34, S-37, S-66, S-45, S-62, S-63, S-68, S-78, S-84, S-87, S-88, S-92, S-46, S-44 AND BALLST CARS S-74, S-75 (YEAR 1927)

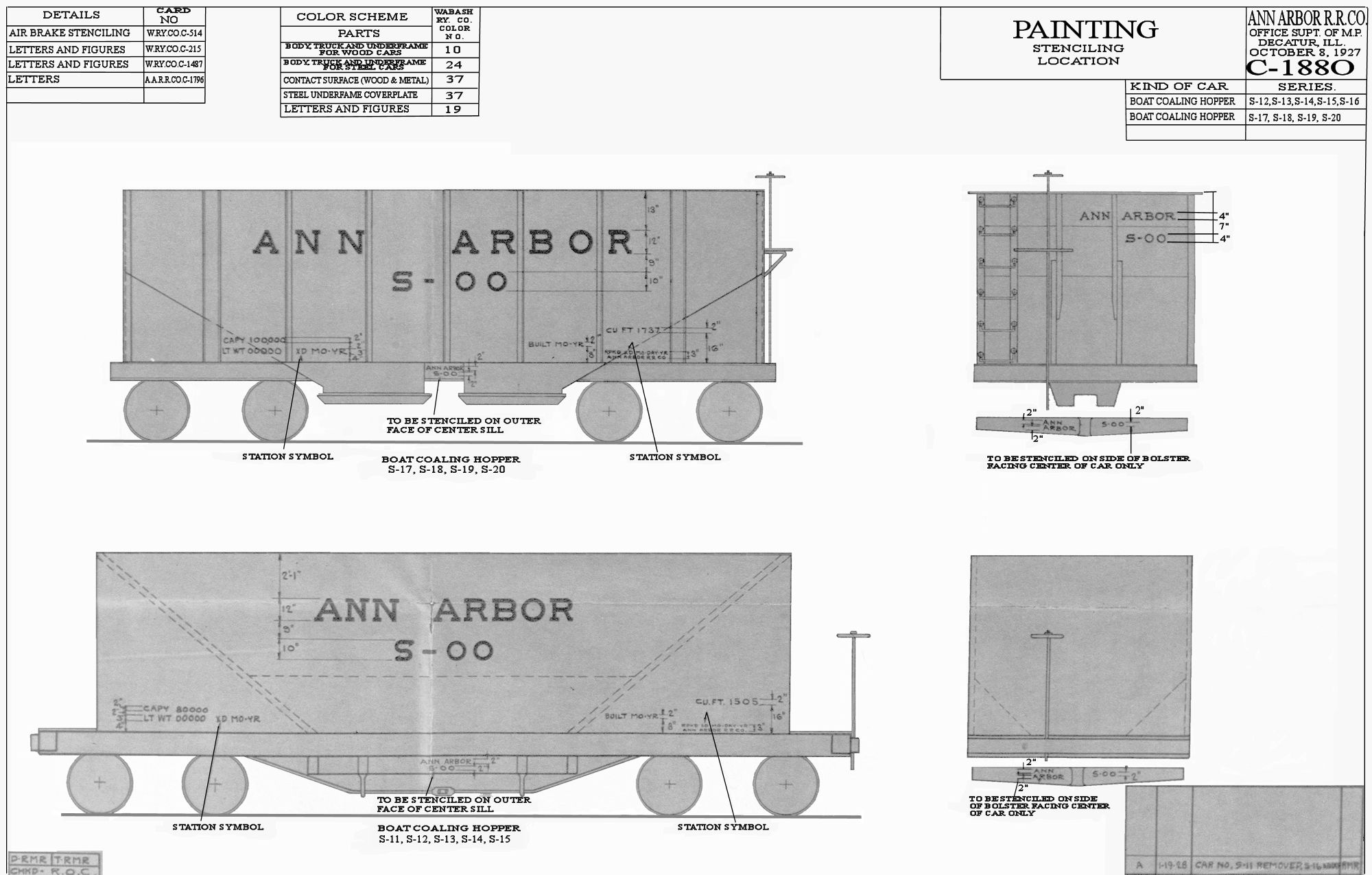

• C-1880 BOAT COALING HOPPERS WOOD S-11,S-12,S-13,S-14,S-15;STEEL S-17,S-18,S-19,S-20 (YEAR 1927)

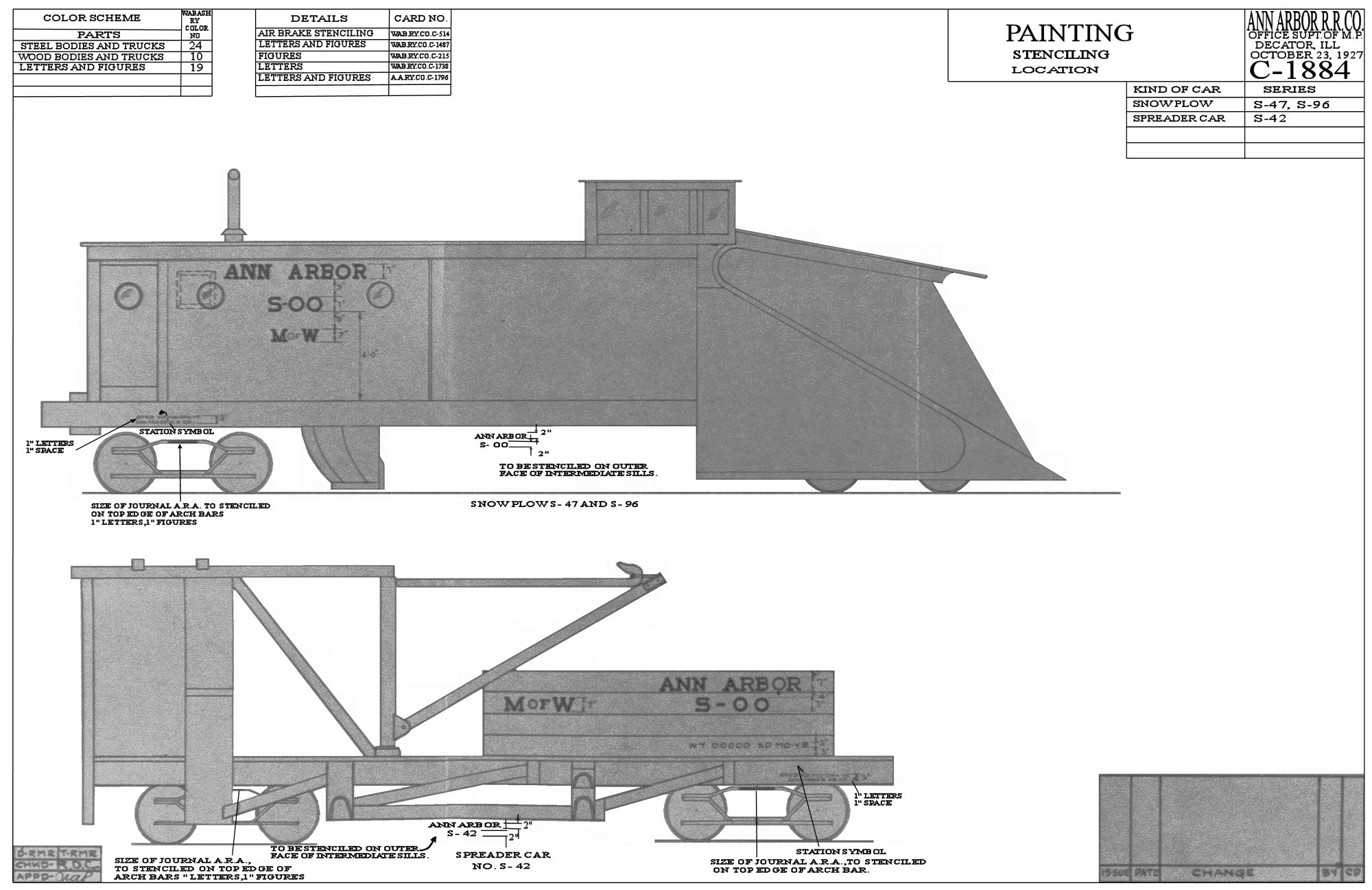

• C-1884 SNOW PLOW S-47, S-96; SPREADER CAR S-42 (YEAR 1927)
