Museum Yard, Roundhouse, and Turntable Project
This page was last updated on: March 06, 2017!
Page 3
February to December 2002
18 Feb 2002 Update
On 18 Feb 2002 Cummins McNitt wrote ".... The Joe Orr Group has begun construction. The last of the caissons for the first bay of the Quarter round house (QRH) are just now being finished. It has been a major challenge because of the two tunnels that run underneath the yard and because of the foot thick cement steel reinforced slabs that have to be cut through in the yard. The drilling crew from South Carolina has had a tough time getting the caissons in place. We are drilling 18 feet deep, 4 feet into the actual bed rock. The steel has been ordered and should be in soon. We hope to have the first bay completed by late April or early May. We still need the funding to get the sides and doors put on, but we believe this funding is now on the horizon. Once the building is in place, Jan Finkbeiner will come in and finish the track work. He redid a new lead through Altoona Pipe and Steel, from their first switch, between their buildings and right up to the 12th St. fence. We have worked out the easement with the city and Altoona Pipe and Steel on the 12th Street crossover. We will install special gates that when opened will close off the pedestrian corridor (temporarily). The crossover will be installed by Orr and Finkbeiner.
We have two leads on turntables, but nothing solid yet. Our goal is to purchase an old one, bring it here and restore it, or perhaps lengthen it if it is too long."
March 21, 2001

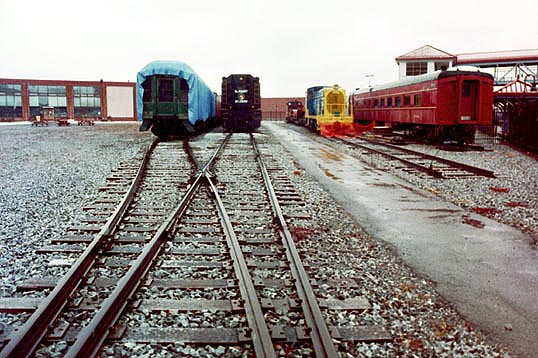

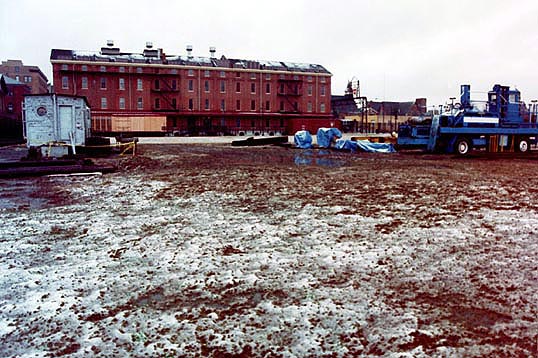

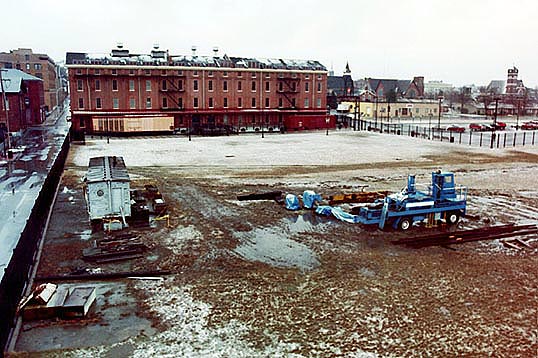

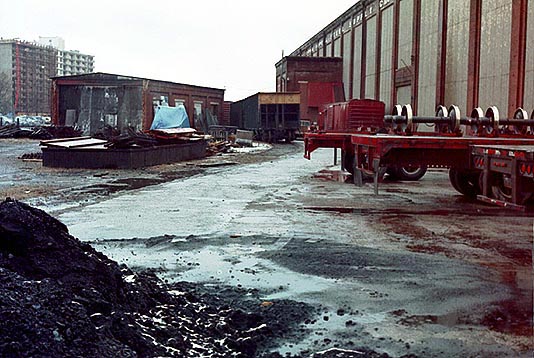

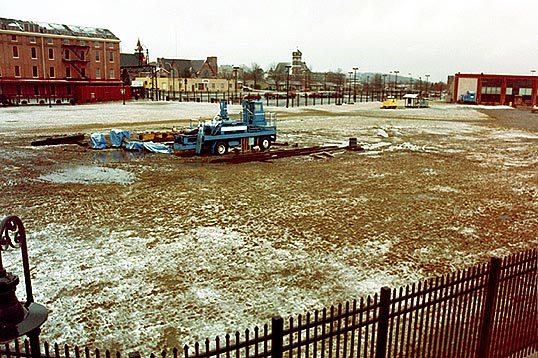

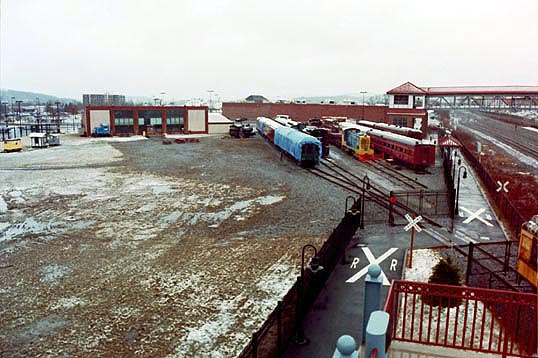

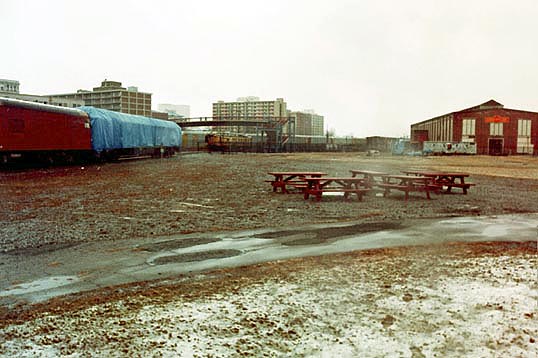

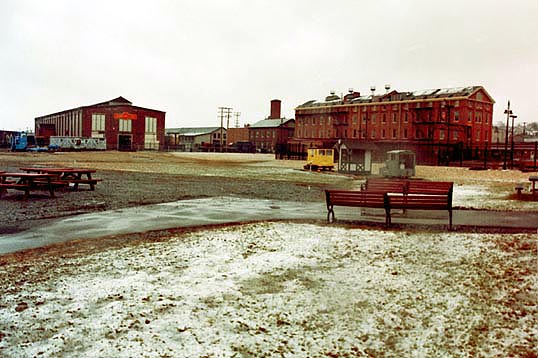

The following photographs, taken 3/21/01, are of the current layout of the Museum Yard.
April 2002 Update

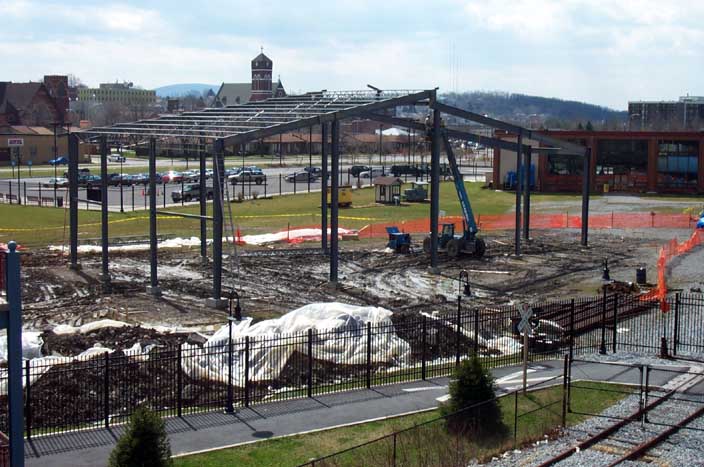

Construction begins on the Museum's New Quarter- roundhouse
![]() |
![]() |
![]() |
![]() |
![]() |

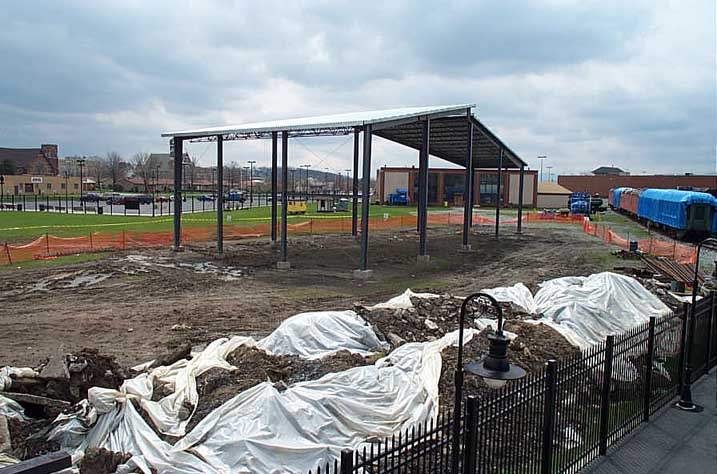

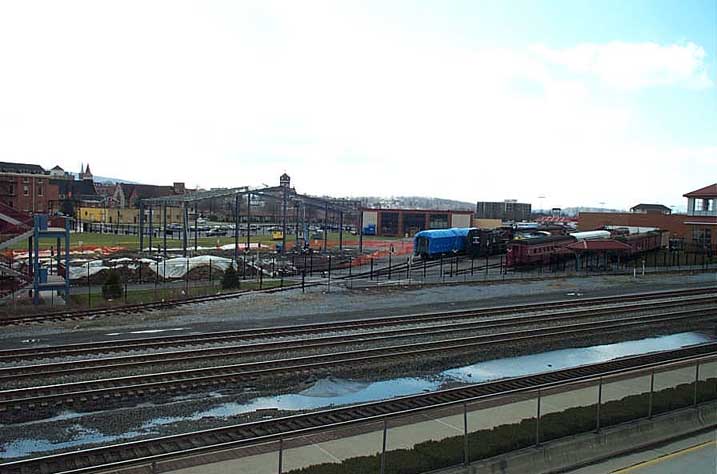

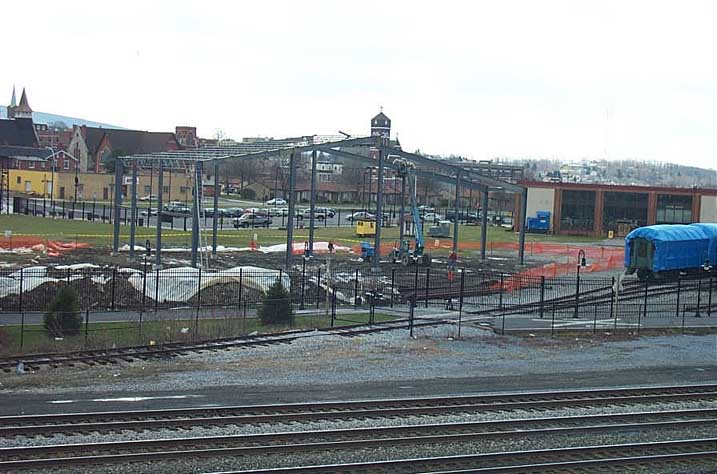

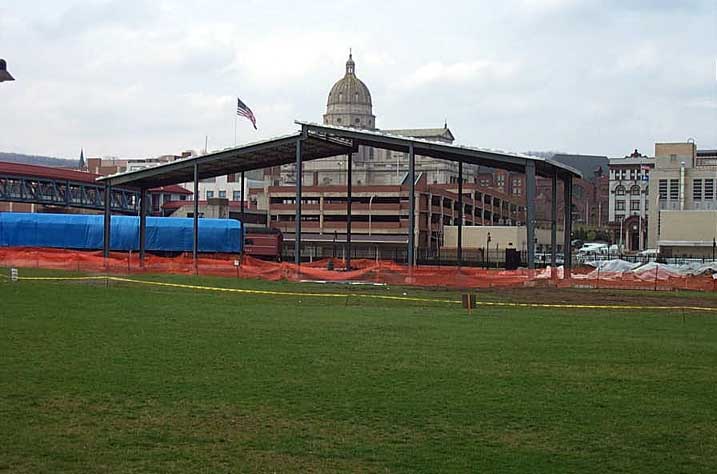

These photographs were taken on 04/01/02 by Barry Kaufman. |
Spring 2002 Update
Quarter Roundhouse Project - The crew from the J.C. Orr Group are progressing nicely. They brought a drilling rig and crew in from South Carolina during the month of February to drill the holes for the caissons. The crew ran into some of the contemporary challenges of our railroading heritage - steel reinforced concrete pads from the early 12th Street Shops and underground tunnels. The reinforced concrete chewed up their teeth and shear bolts on their equipment. We caught the side of one of the early tunnels and it proceeded to fill our holes with surface water draining from the old passage ways. The tunnels were used by the PRR to carry steam, electric, water and sewage throughout the shops and city. The City Water Authority personnel tell us that many of the tunnels built in the late 19th Century of brick are better constructed than those built of concrete in the 1970’s. All obstacles were overcome - eventually. The building steel is arriving as we go to press and the project is on schedule. We are anticipating the building to be completed by mid-May. (Spring issue of "The Standard", Altoona Railroaders Memorial Museum)
June 15, 2002 Update

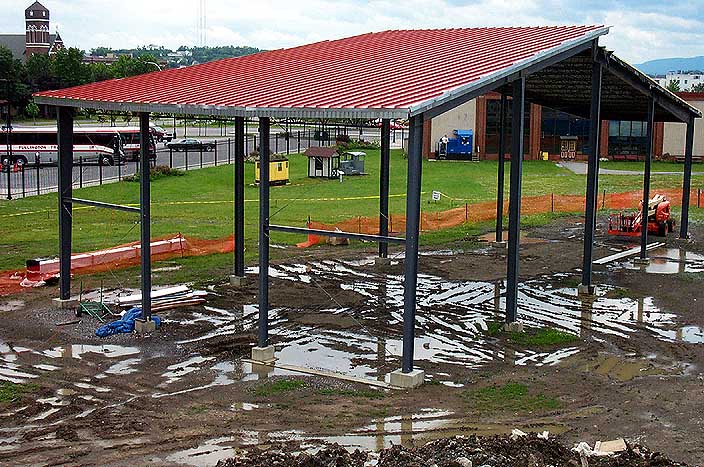

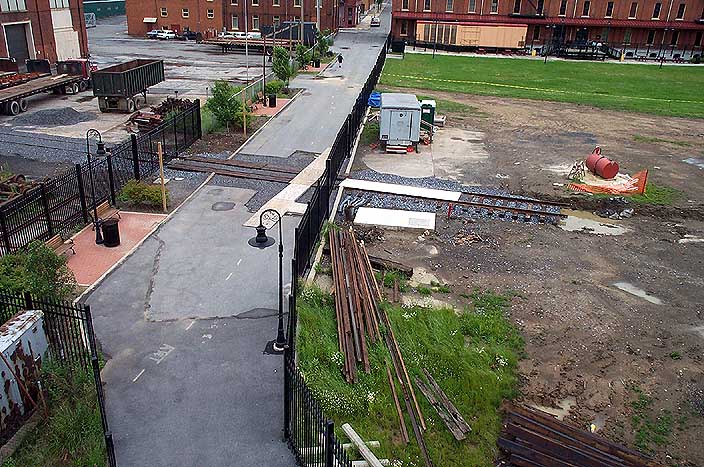

These photographs were taken 6/15/02 and depict the red metal roof panels on the roof of the round-house and the new rail crossing to the Museum grounds. by Barry Kaufman.
August 08, 2002 Update
On 8/8/02, David Seidel wrote "Much ado, much new, much ongoing at ARMM. A brief review:
Construction and preparation are now resumed to prepare the grounds for the anticipated turntable for the round house. All rolling stock is being moved and relocated; a few pieces may be de-accessioned.
Most rolling stock has been lifted onto the "live" siding track and moved to the the Horseshoe Curve Chapter's siding at the Ward Warehouse at 4th Street. The Chapter leases one track, but WARD is permitting use of 2nd track as well.
As of today, only the fence-line track along the linear park remains. This contains the (from east to west), dining car, Birch River Pullman, Fruit Growers Express car; GG-1 # 4913 remains on an adjacent track. One car is on the "live" track as of today, the ex-PRR, ex-PCRR, Conrail Class FD-2, depressed center flat car referred to as the "Queen Mary".
A new track has been constructed on the lawn of the museum, and a new access track (through and from west-end of) the Altoona Pipe & Steel shop (PRR circa 1905). Tomorrow a temporary link will be laid across 12th street . This matches up with a gate on AP&S property and a gate at ARMM. The FD-2 will be moved August 8th, out of museum property on the live siding, and back through Altoona Pipe & Steel sidings, through their shop, across 12th Street through fence lines, and onto the lawn of the ARMM. The FD-2 class flat, a one-of-a-kind car with 32 wheels from 4 truck sets from the PRR Class T-1 locomotive tenders, will be used as a stage for special events at ARMM in the future.
The Diner, and Birch River and Fruit Growers Express car will be lifted onto the live siding and moved to Ward Warehouse sidings temporarily. Then, the live siding will be cut into the adjacent track to remove the GG-1 temporarily.

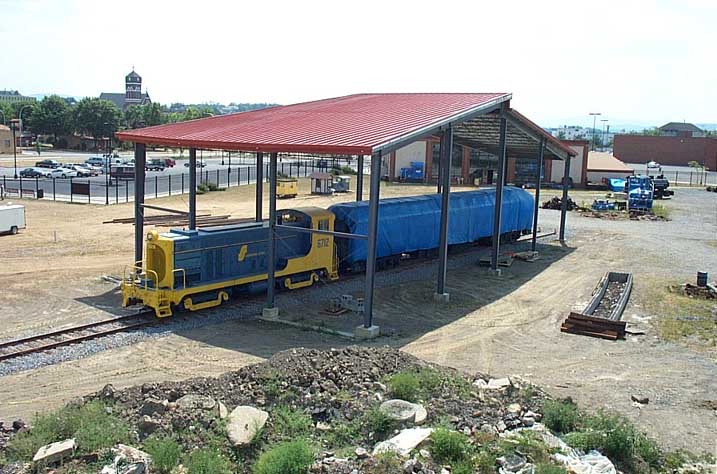

Ties are laid from another (new )access track through Altoona Pipe and Steel Co. which is already cut into and laid permanently across 12th street and fence lines. Rail will be applied from fence line on the ties into the roundhouse shell; the LORETTO, private railcar of steel baron Charles M. Schwab, will be stored under this shelter temporarily.
A corporate sponsor, Blair Medical Associates of Altoona, is funding the acquisition of the new turntable for the museum, which will be installed in close proximity to building B."

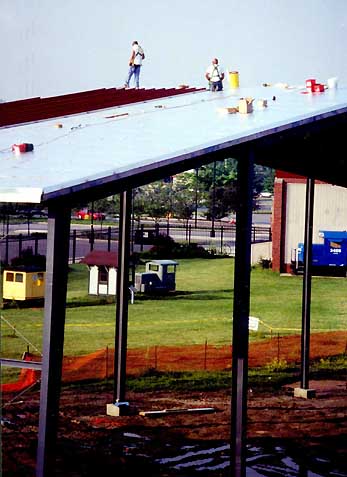

This view shows workers installing the roof on the roundhouse. Photograph by David Seidel. Pre-June 2002. Date unknown.
August 09, 2002 Update -Turntable Located
On 8/9/02, David Seidel advised a turntable has been located. It is coming from Pen Argyl, PA on an old Reading RR line. The table is 100 ft. It has been buried in the pit but is being dug out and shipped to Altoona. Track was being extended into the roundhouse stall on 8/8/02 and 8/9/02 as the cut across 12th Street is complete.
August 13, 2002 Update-"Queen Mary" Move

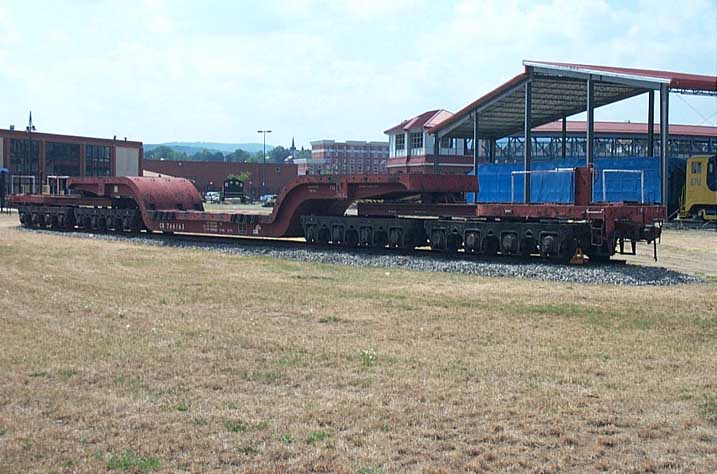

On Thursday morning, August 8, 2002, another operation changed the landscape at Altoona Railroader's Memorial Museum significantly. The ongoing project to relocate all rolling stock from land-locked stub-end tracks, in preparation for the construction of a turntable pit, resulted in the move of the Class FD-2 Depressed Center Flat Car (ex-PRR 470245), which railroaders have affectionately called the Queen Mary due to it's enormous size (not to be confused with former office car QM). With a light-weight of 250 tons and 32 wheels (four truck sets from former Class T-1 locomotive tenders), measuring 121 ft 9" in length, the QM moved slowly from it's perch at ARMM with much squealing of wheel against rail and creaking of tie and rail joint. At a modest 5 mph to navigate track curvature, the beast moved easterly out of the museum property to the east end of the Altoona Pipe and Steel industrial tracks. The NS crew assisting with the project then reversed direction through the AP&S Shop to the shop's west door (ex-PRR 1905) to what had previously been a dead-end track at 12th St., Altoona. However, crews of Jan Finkbinder had constructed a track extension from the west end door of AP&S to the 12th st fenceline, matching the industrial gate; placement of a temporary track across the pedestrian right of way (12th st) and into the museum property, which, coincidentally lined up with ARMM's existing gate.
On the first attempt, the QM's massive size moved across 12th st but that low under-belly hung up on the crown of the temporary track. A few minor adjustments later with track-jacks resolved the problem and the QM moved freely onto the lawn in front of Altoona Railroader's Memorial Museum without a wheel hitting the dirt. Having observed the operation, the crew of Jan Finkbinder deserves the credit for the skills demonstrated on the project.

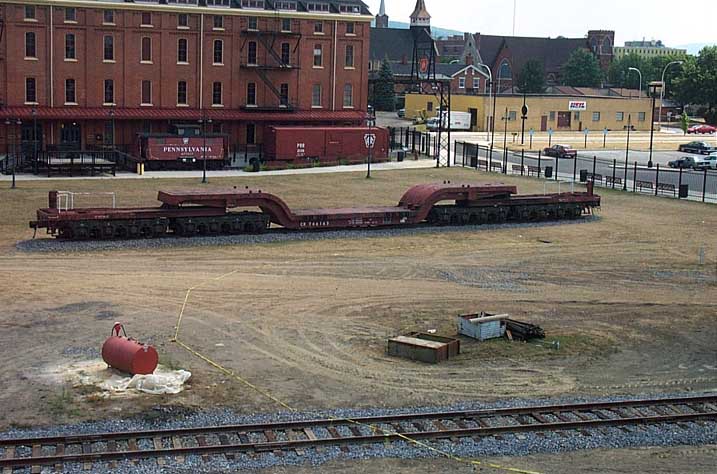

Today, the QM sits on the lawn of ARMM, where industrial shops of the PRR once stood. This car dominates the landscape and it's size is truly appreciated from this perspective, rather than being buried in a series of parallel tracks. Museum officials plan to utilize theQM as a stage and platform for special occasion performances and will, no doubt, be prominent at Railfest activities this year. NS engineman on the SW-1500 was George Mitchell and the locomotive was ex-Conrail and appropriately sub-labled: PRR from the July 1, 1999 merger date. A PRR builder's photo of the FD-2 can be found displayed in Building B of ARMM.
The Queen Mary was donated to Altoona Railroader's Memorial Museum in 1999 prior to the merger with NS. Load capacity of the FD-2 is another 250 tons." by David Seidel

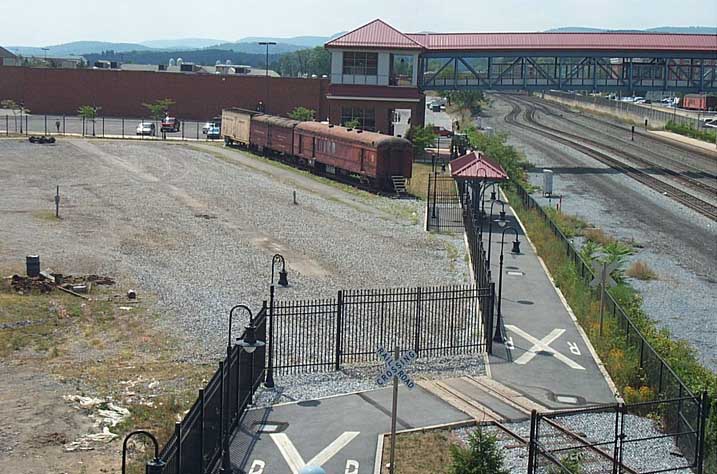

August 21, 2002 Update - Photos of the Yard Realignment and the "Queen Mary" Move
by Barry Kauffman
